This guide provides general instructions and acknowledges that there may be variations between different models.
To replace electrical components, the robotic lawn mower must be opened, and the chassis separated from the top cover. The design of the mower ensures easy work and follows a step-by-step logic in the process. Take your time when replacing parts on your mower for the first time. All parts for your robotic lawn mower can be found on our website https://schou.com.
A few tips:
- Photograph each step of the process, including all involved parts, as this can help when reversing the steps for reassembly or when ordering spare parts.
- Do not overtighten the screws. The unit’s components are made of plastic, and the threads can be easily damaged if you use too much force or torque on your power tools (we recommend a cordless drill/screwdriver set to a torque of 4).
- Be patient when loosening snap locks and clips, and ensure that the tool you choose fits well.
- Always replace one part at a time.
Read Instructions for Opening the Robotic Lawn Mower before you replace the cutting motor

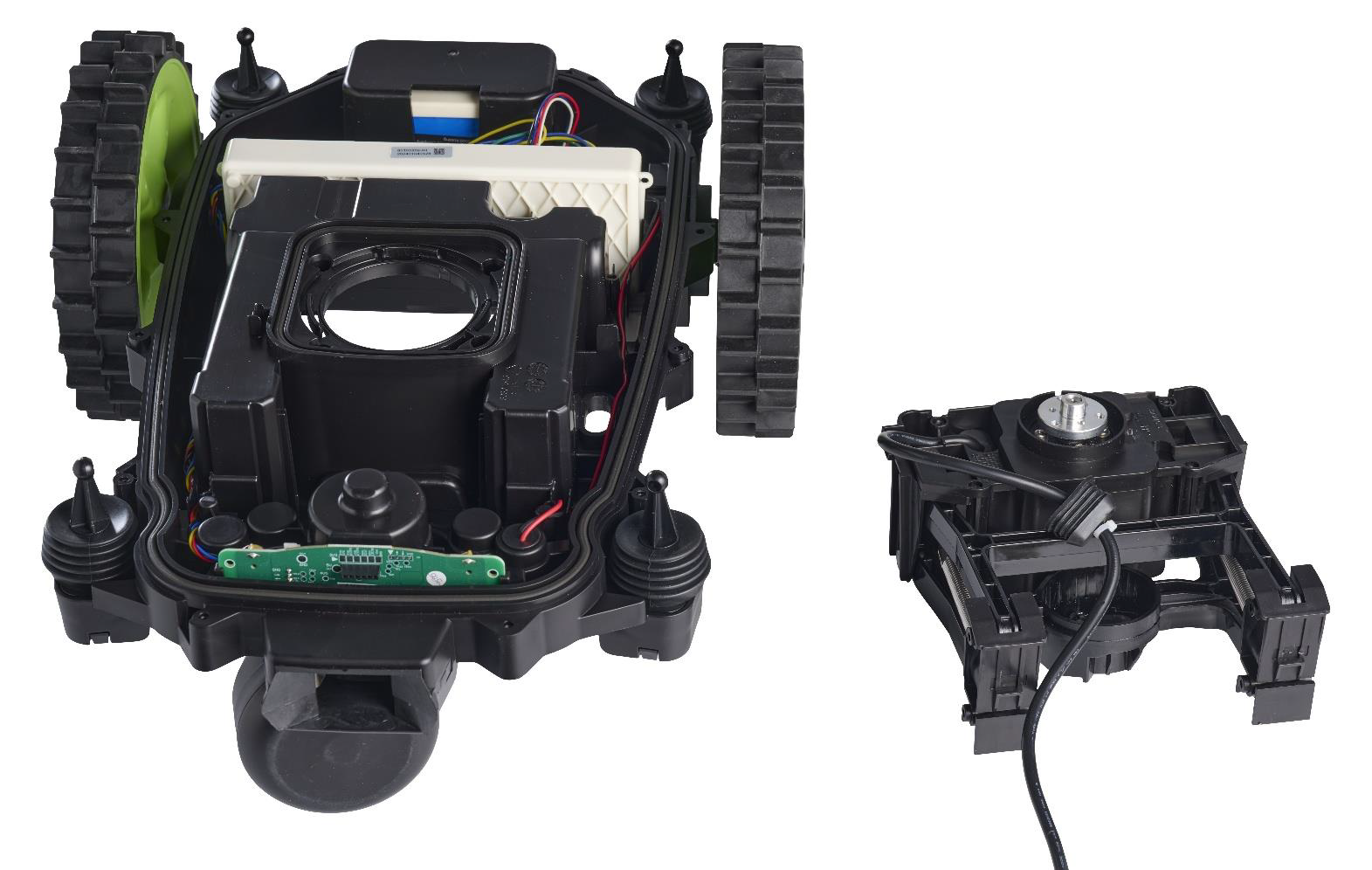

1. After opening the robotic lawn mower and releasing the cutting motor unit, disconnect it from the PCB. Replace with the new unit and reassemble.

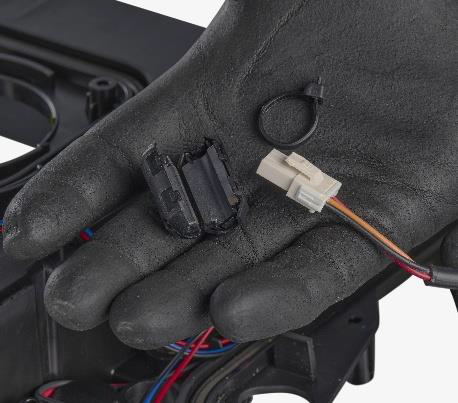

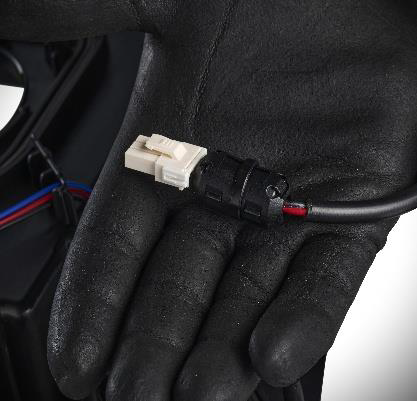

For older versions of robotic lawn mowers that have EMC rings, please remove them and attach them to the cable on the new part.
