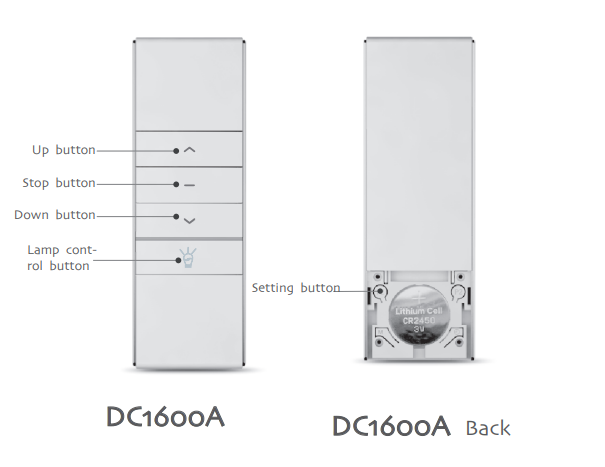

DC1600A Remote Control – Setup and Use

Technical specifications:

• Battery: 3V (CR2450)
• Frequency: 433MHz
• Range: 200 metres (line of sight), 35 metres (through 2 walls)
• Operating temperature: -10°C to 50°C

Pairing with motor:

1. Turn on the motor
2. Wait for a long beep from the motor
3. Press the setting button on the remote control once
4. Wait for one beep
5. Press the setting button once again
6. Wait for one beep
7. Press the UP button once to control the motor clockwise, or press the DOWN button once to control the motor counterclockwise
8. The motor confirms with sound or movement

Note: No more than 4 seconds should pass between each step, otherwise the setting will be cancelled.

Lamp control (only models with lamp function):

• Press the lamp button once to turn on the light
• Press again to turn off
• Continue pressing to toggle between on and off

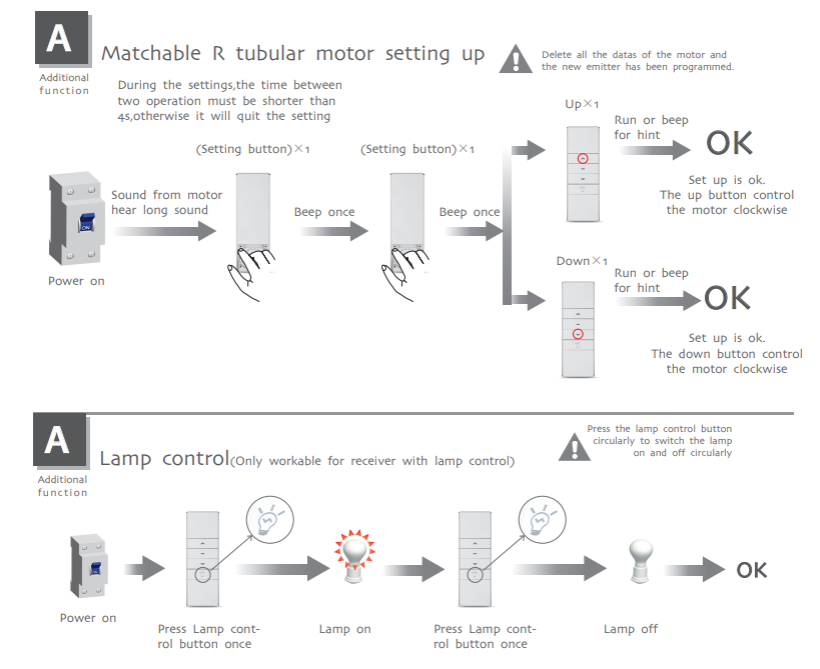

Below you will find a visual diagram showing how to pair the remote control with the motor and the light control.
