Connecting Boundary Wire - Adano RM5 500m2 / SMART 365 500m2

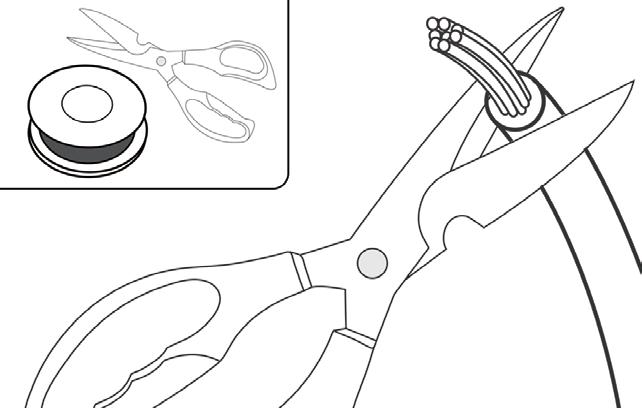

1. Cut the cable: Strip approximately 10 mm from one end of the boundary wire.

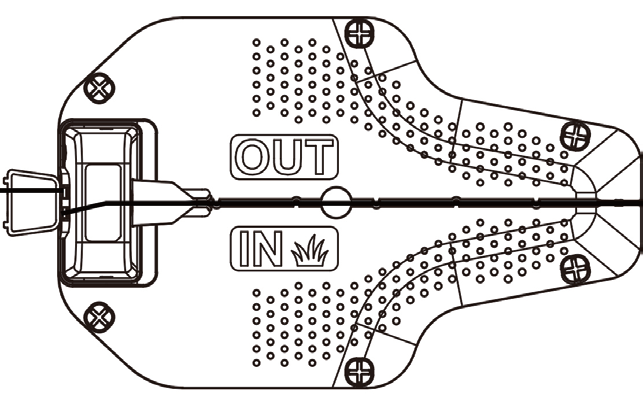

2. Connect to OUT: Insert the stripped end into the red terminal (OUT).

3. Run the cable: Run the boundary wire through the opening under the charger’s base plate.

4. Lay the cable: Lay the boundary wire around the work area.

5. Remove excess cable: Remove any unnecessary excess cable to avoid interference.

6. Strip the other end: Strip approximately 10 mm from the other end of the cable.
