Connector for break or extension of cable

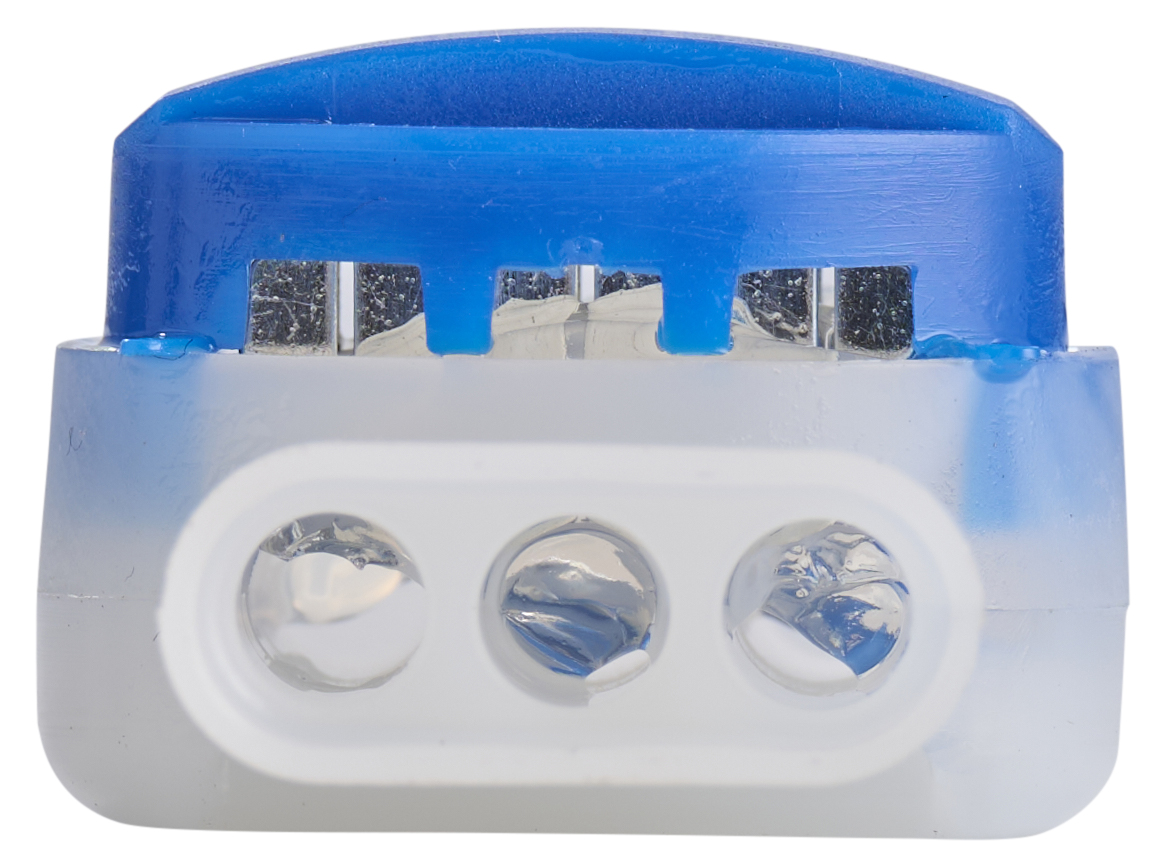

Use a waterproof connector (silicone connector) when repairing or extending the boundary cable.

Samlemuffer 1.jpg

Do not strip the wire before inserting it into the connector.

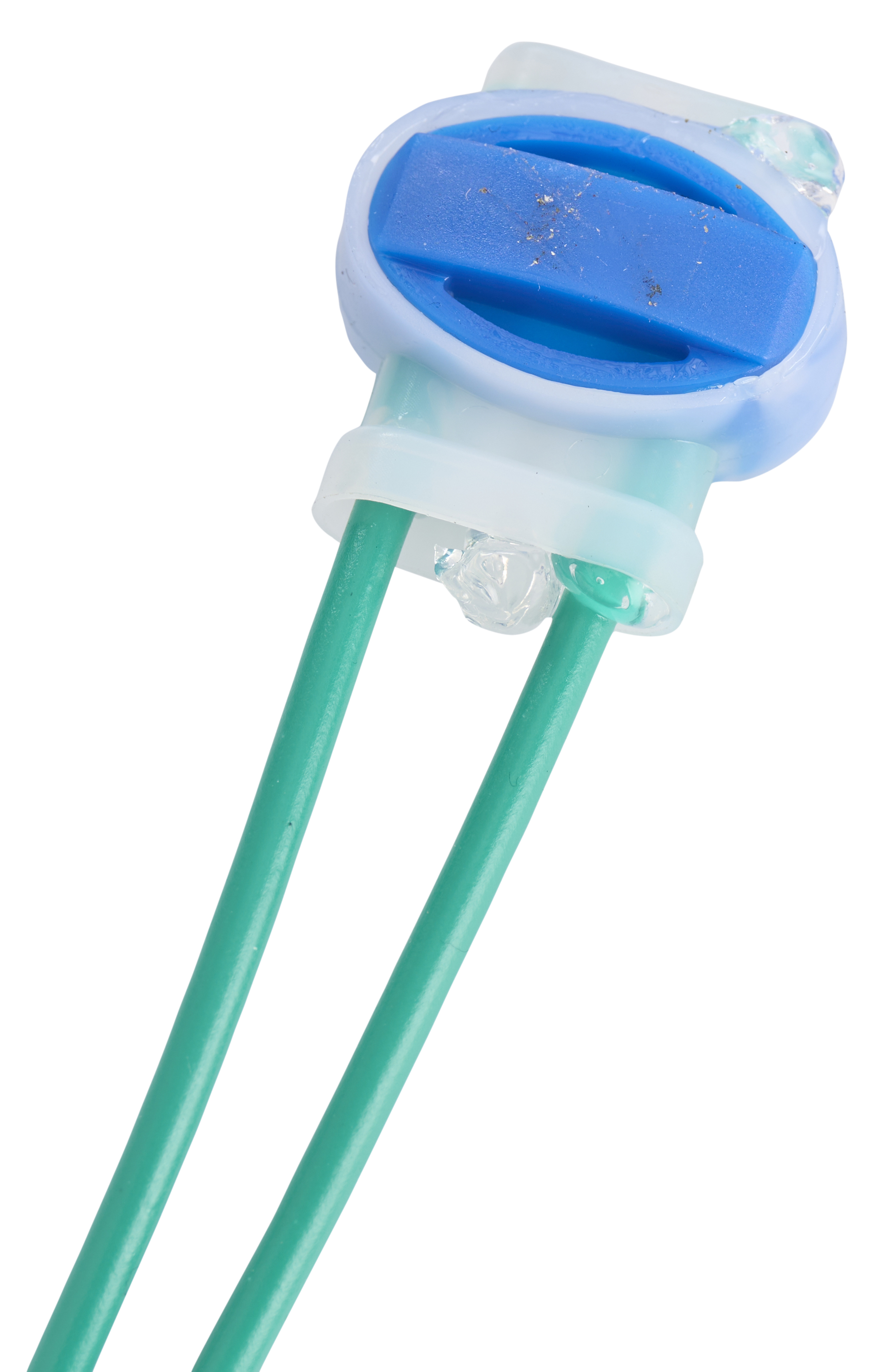

Insert the wire into the connector, where the pins will penetrate through the insulation.

Samlemuffer 2.jpg

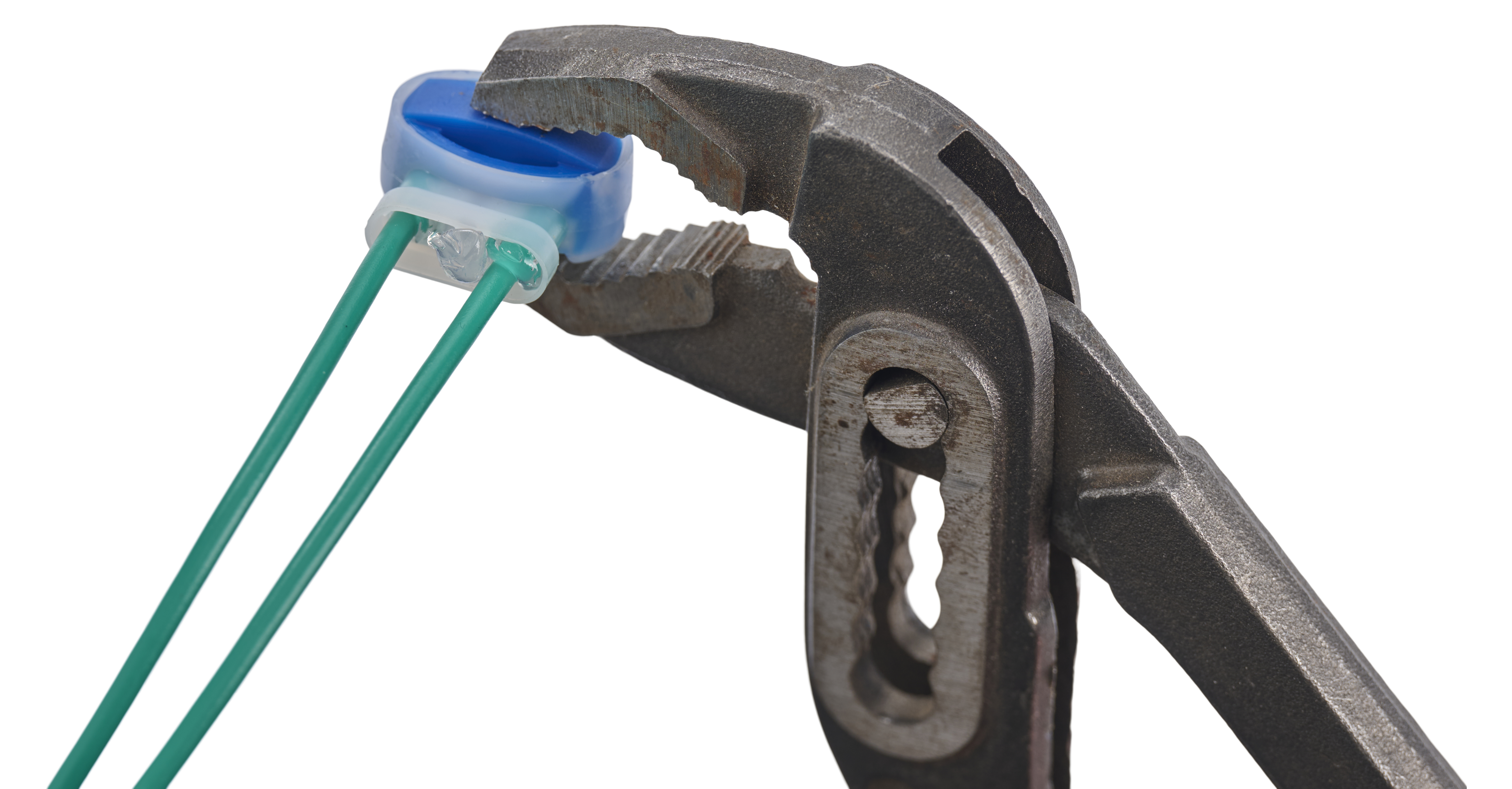

Press down the blue piece to seal the connector. A small amount of silicone will come out.

Samlemuffer 3.jpg

Bury the connector in the lawn to prevent the blades from cutting the boundary wire.
