Replacing the Front Wheel

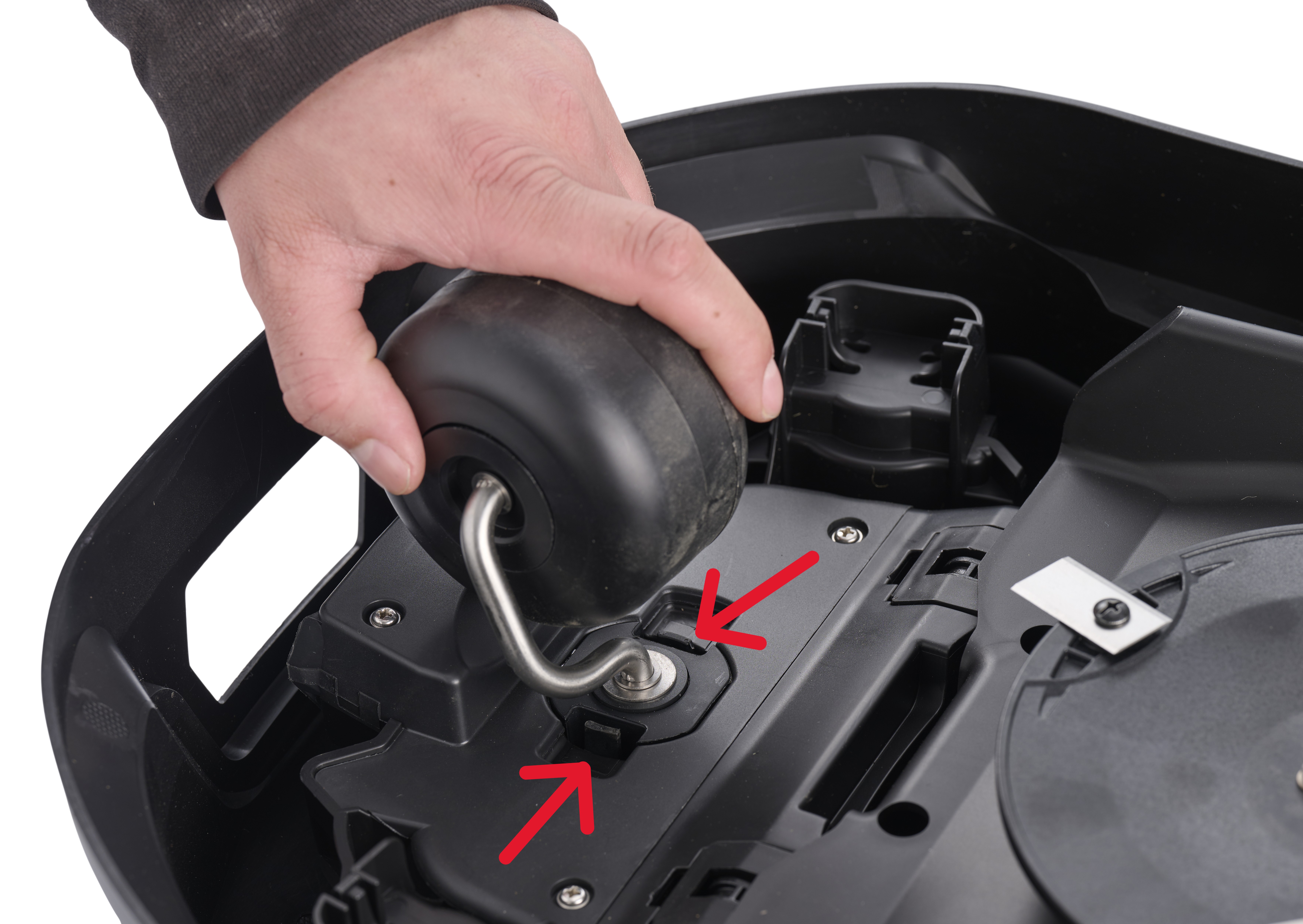

Press the two locking levers to release the wheel holder and pull it out of the lawn mower chassis.

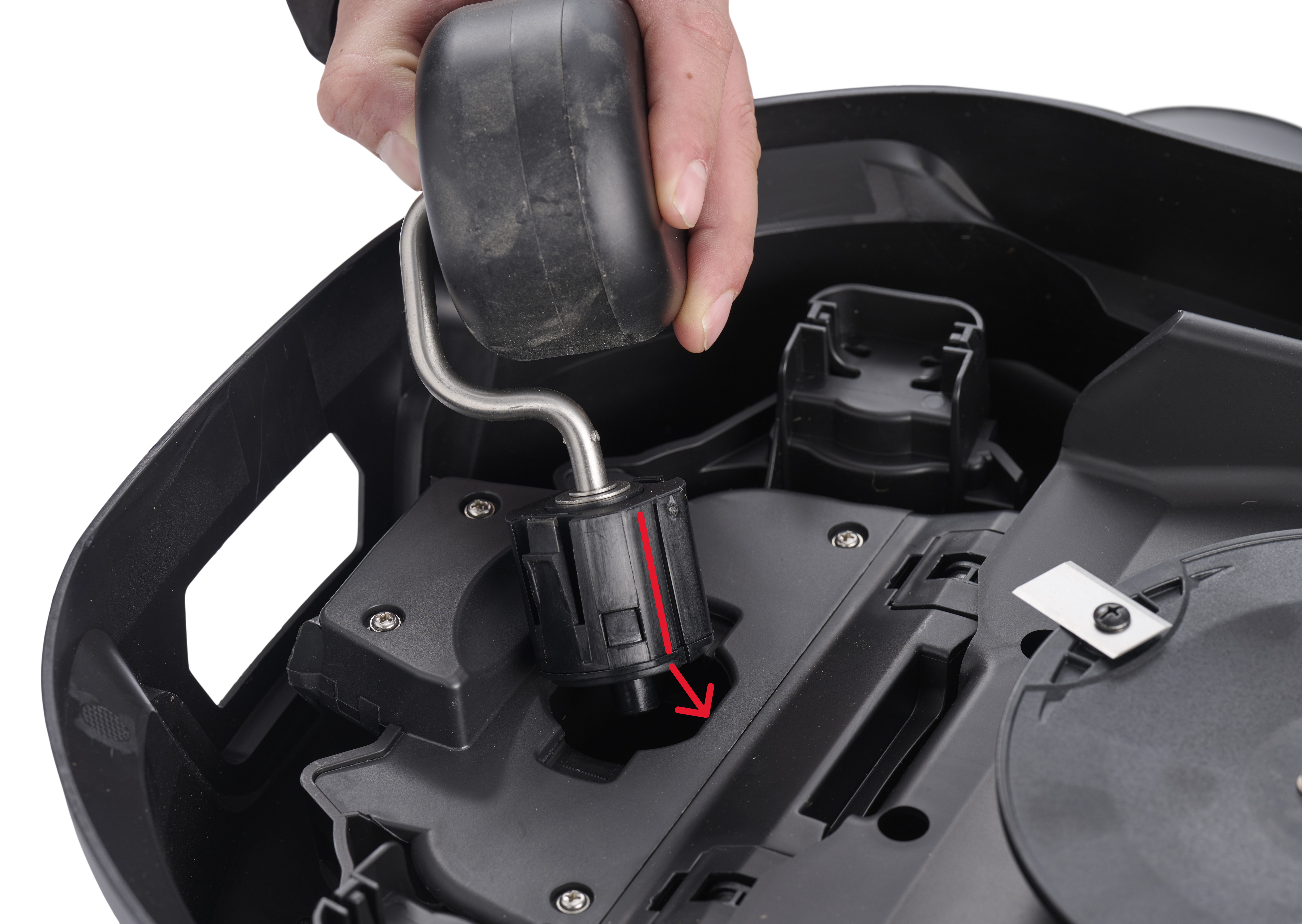

Insert the new wheel holder into the slot and ensure it is correctly positioned.
Press firmly until the holder clicks securely into place.

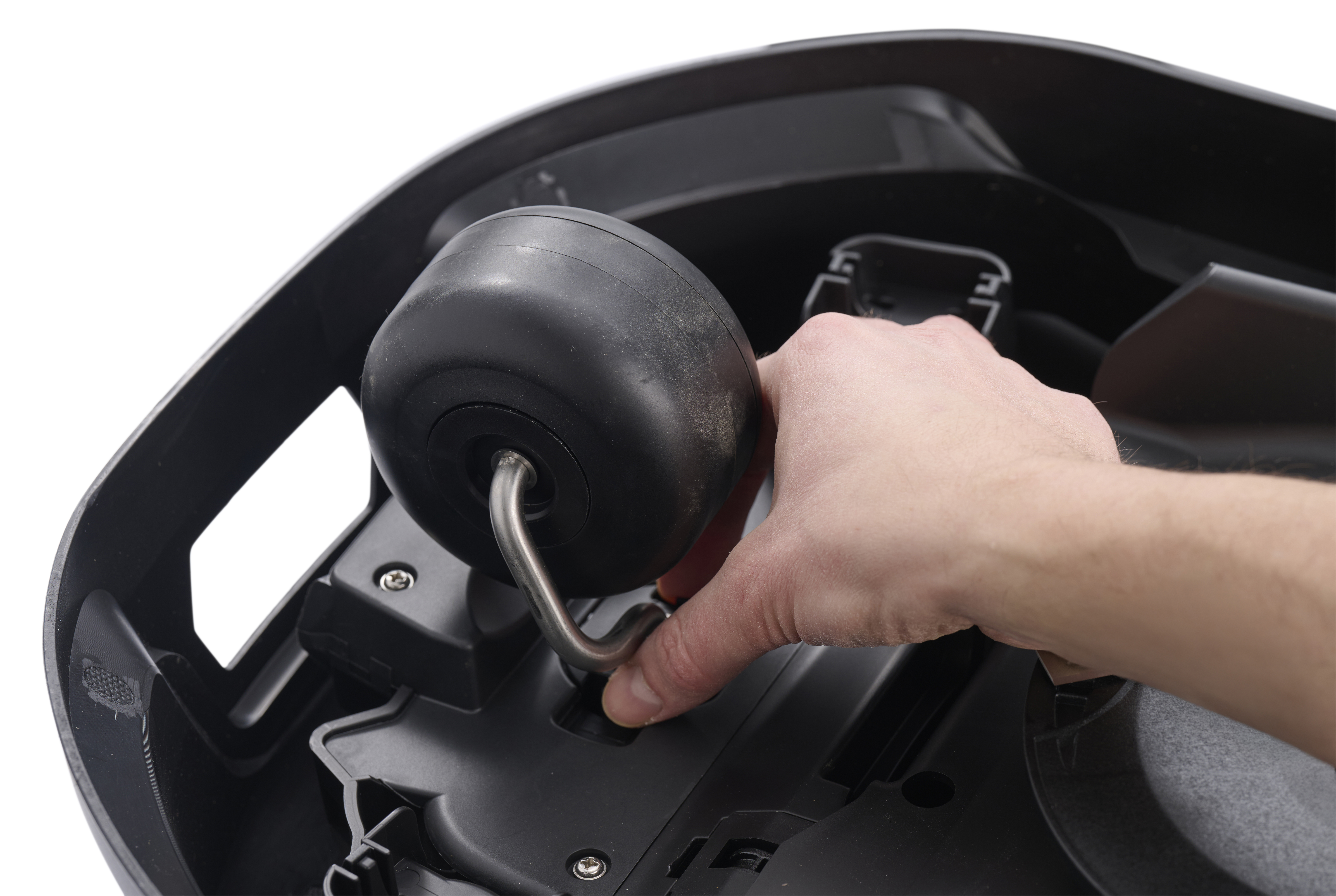

Rotate the wheel manually and move the axle up and down to ensure it moves freely inside the holder.
NOTE! The robotic lawn mower has a sensor that detects the magnet on the wheel axle. This sensor detects when the front of the robot is lifted.
