Replacement of the Backup Battery
Start by removing the battery and top cover.
The procedure for removing the battery is described in the user manual.

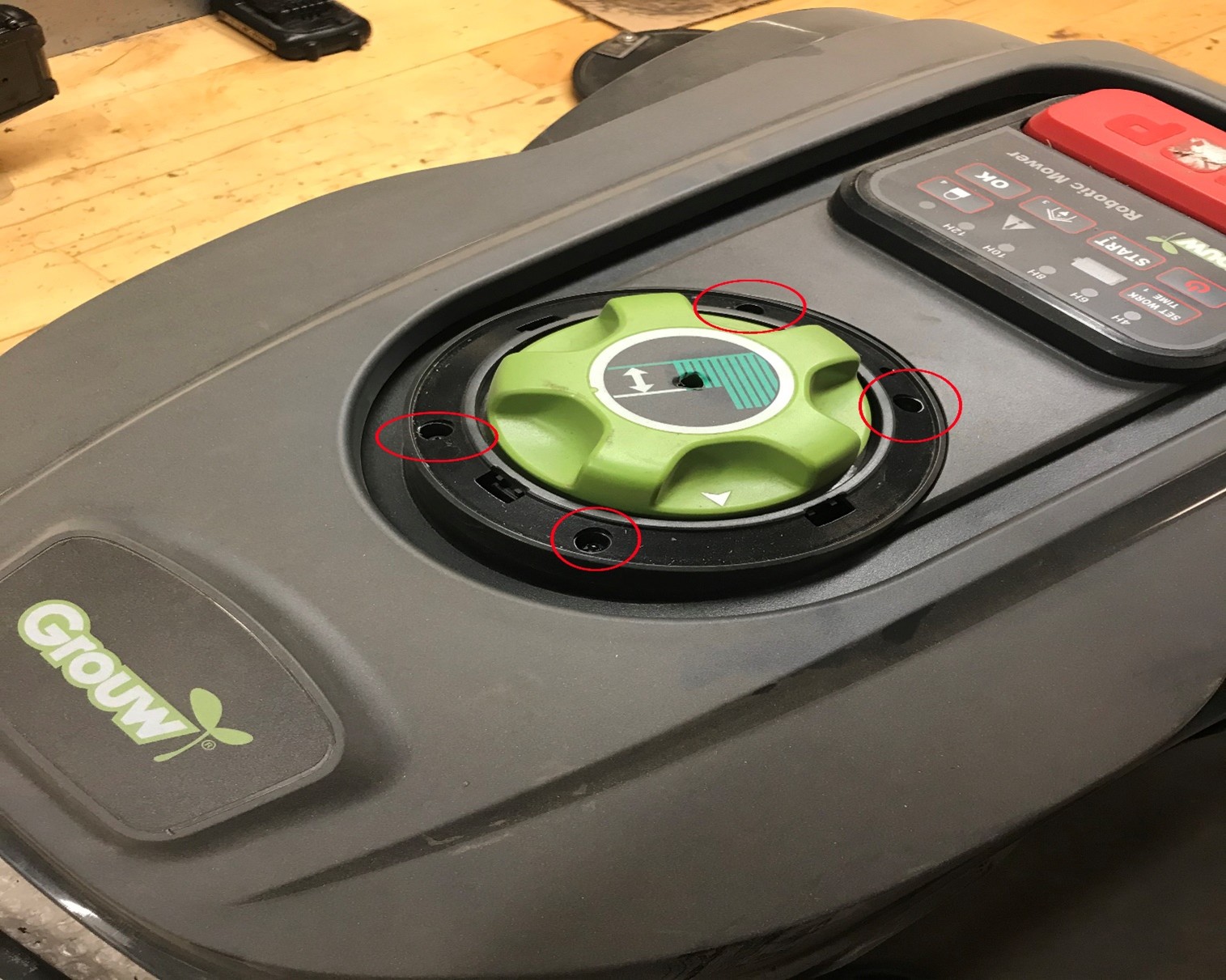

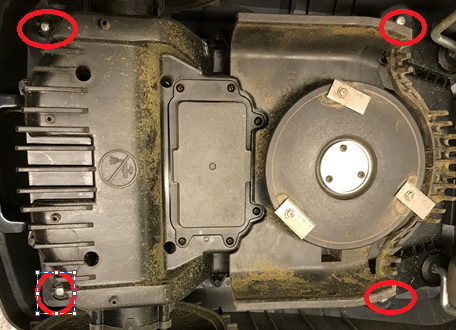

Once the battery has been correctly removed, proceed to unscrew the four bolts that hold the top cover in place (indicated by red circles).

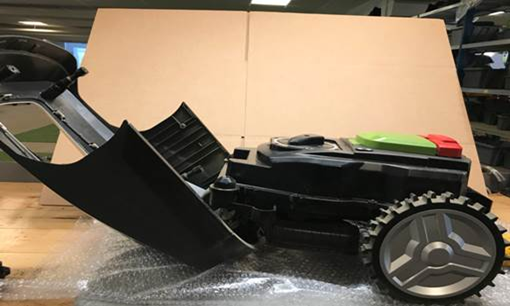

After removing the battery and bolts, turn your robot and lift the top cover, setting it aside (it remains connected by two sensor cables). You should see something like this:

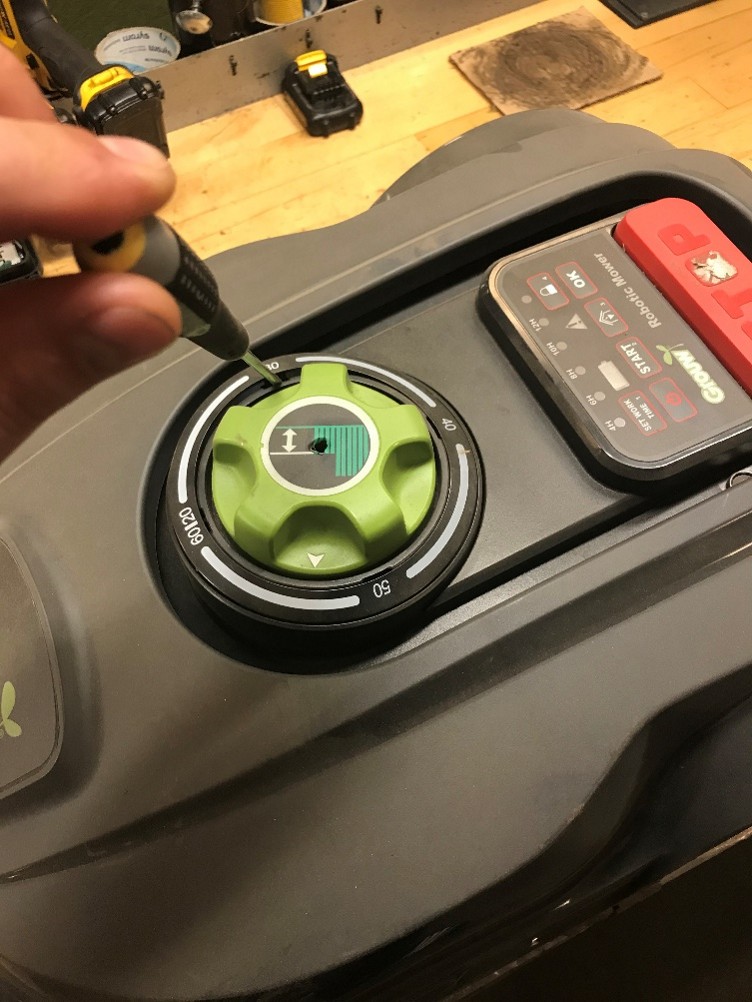

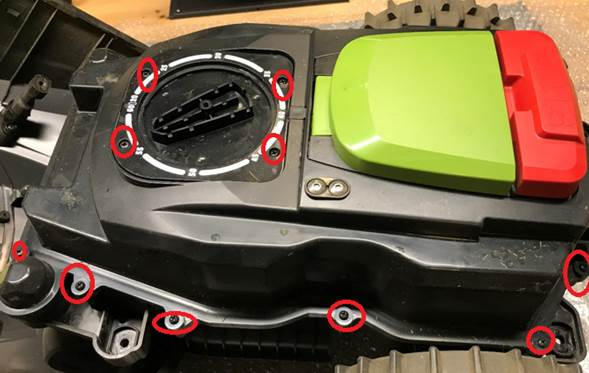

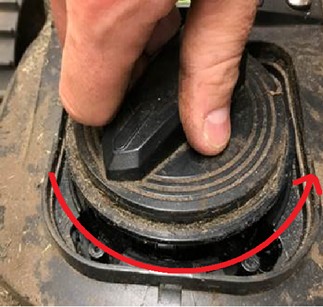

To open the robot, remove all screws around the upper part of the top cover and cutting height unit (a total of 20, see the pictures below).

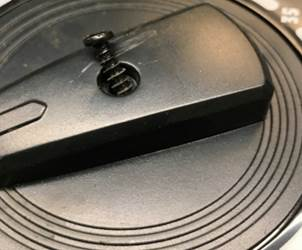

Use the specific screw for the cover; do not replace it with others.

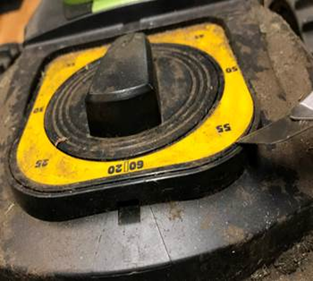

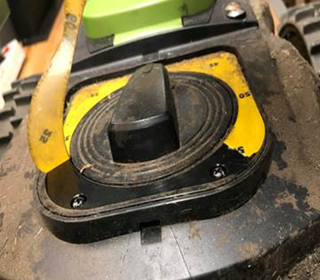

Alternatively, if another version is available.

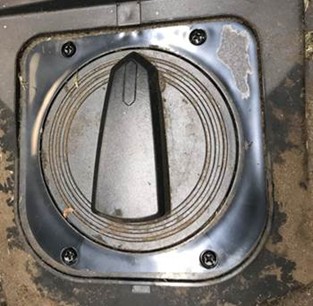

Alternatively, if another version is available.

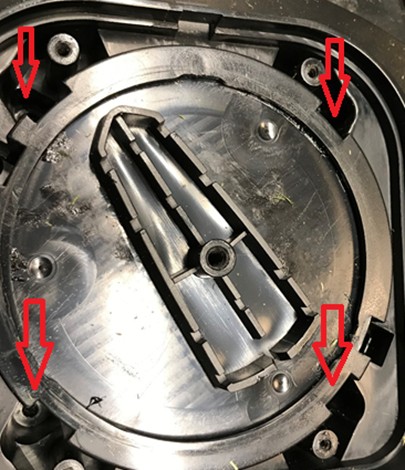

These red arrows point to the four screws located 5 cm deep under the height adjustment button. They must be removed; otherwise, the chassis cannot be separated from the top cover.

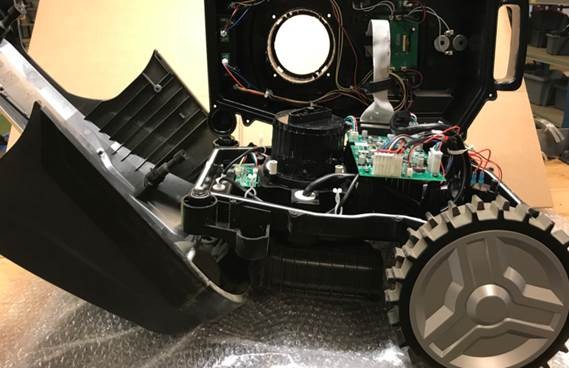

After removing all screws, the robot can be opened.

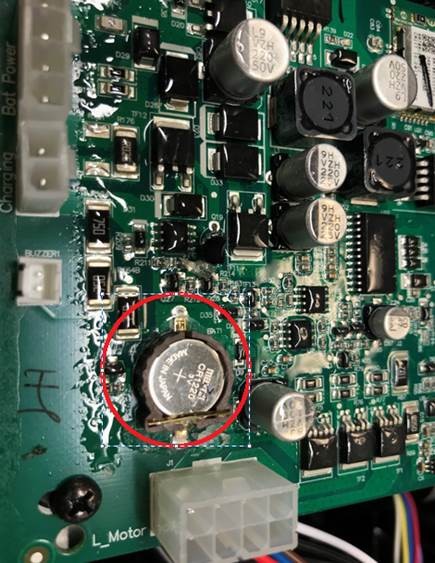

The backup battery is a standard CR1220, located in one corner of the board.
Replace the CR1220, and then reassemble the robot by following the steps in reverse order.
- This guide applies to the following models:
17940 - Grouw Robotic Lawnmower S600
17941 - Grouw Robotic Lawnmower M900 App Control
17945 - Grouw Robotic Lawnmower S400
17946 - Grouw Robotic Lawnmower S500 App Control
17947 - Grouw Robotic Lawnmower L1200 App Control
17948 - Grouw Robotic Lawnmower M800 App Control
17949 - Grouw Robotic Lawnmower M600
17919 - Garden Robotic Lawnmower 1200m2 App Control
17923 - Garden Robotic Lawnmower 800m2 App Control
68059 - Adano Robotic Lawnmower 800WL
68130 - Adano Robotic Lawnmower 801WL
