Manual Setting of Working Time - Grouw S500 APP Control

Manual setting of daily working time:

Turn on the robotic lawn mower:

• Press the "POWER" button inside (red circle in the image).
• The on/lock indicator light will illuminate red (yellow circle in the image).
• The battery and error indicator lights will blink alternately (blue circle in the image).
• The robotic lawn mower is ready after approximately 4 seconds.

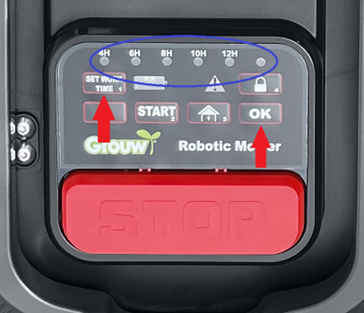

Set the working time:

•
  •
    • Enter the PIN code and press "OK".
    • Press the "SET WORK TIME" button one or more times to select the working time (4, 6, 8, 10 or 12 hours).
    • Press "OK" to confirm the settings.

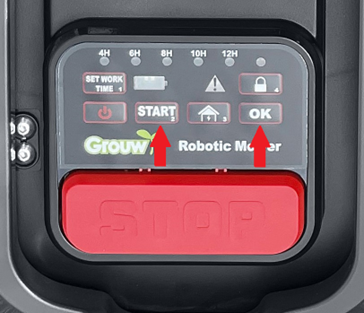

Start the robotic lawn mower:

•
  •
    • Press the "START" button followed by "OK"
    • The robotic lawn mower will begin mowing and will continue for the selected number of hours.
    • Mowing will start over each day at the same time as the first time.
    • The recommended start time is 9 AM to avoid dew on the lawn.

Recommended daily working time:

• 300 m² lawn: 4 hours
• 500 m² lawn: 6 hours

You can change the start time by repeating the above steps at the desired time.
