Manual Charging of the Battery - Grouw S400

Manual charging of the battery:



Follow the instructions carefully:

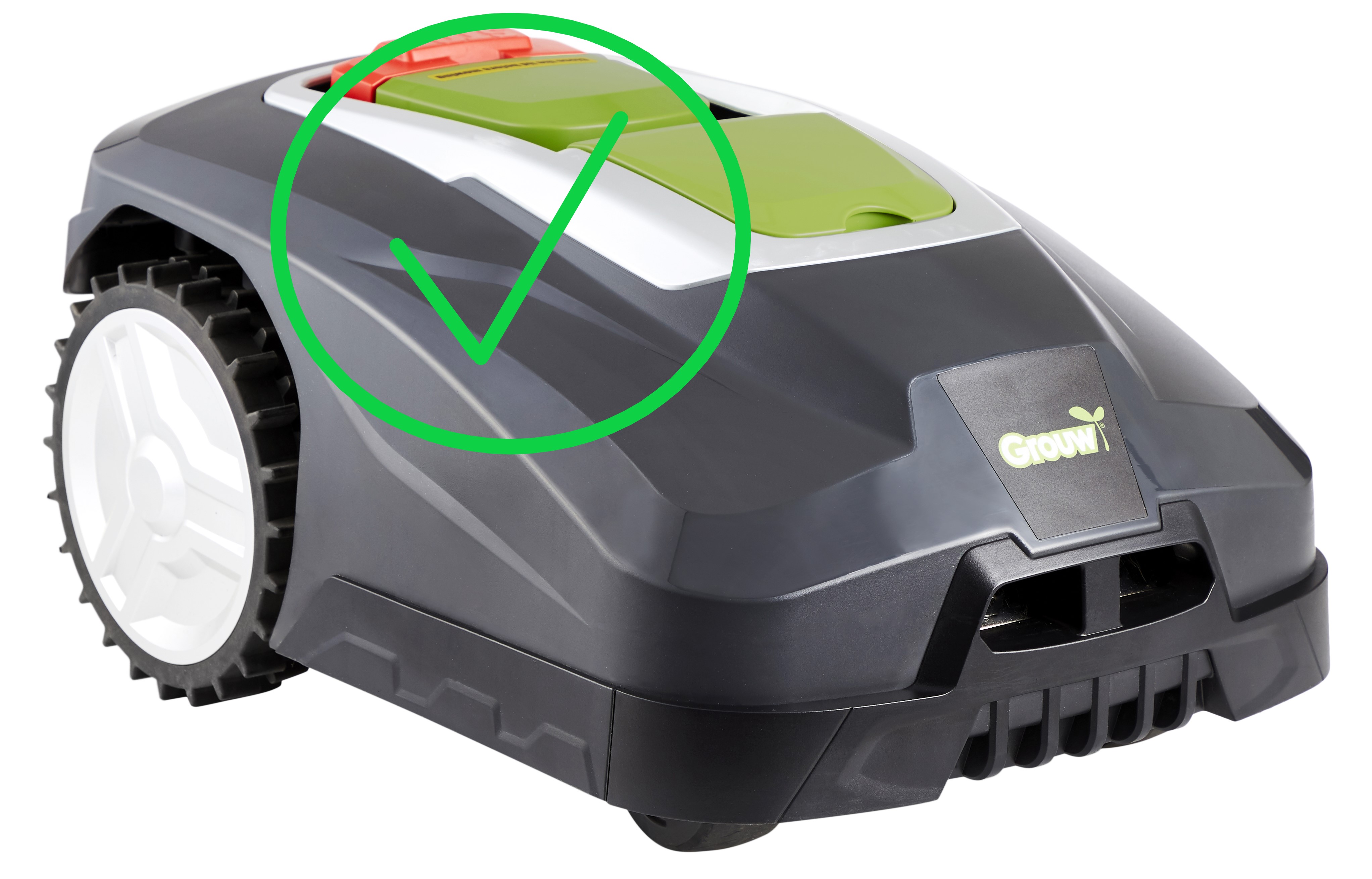

Ensure that the lid is closed (applies to L and M models).

Remove the machine from the charging station.

Turn off the main switch and wait 5 seconds.

Turn on the main switch again and push the machine back into the charging station.

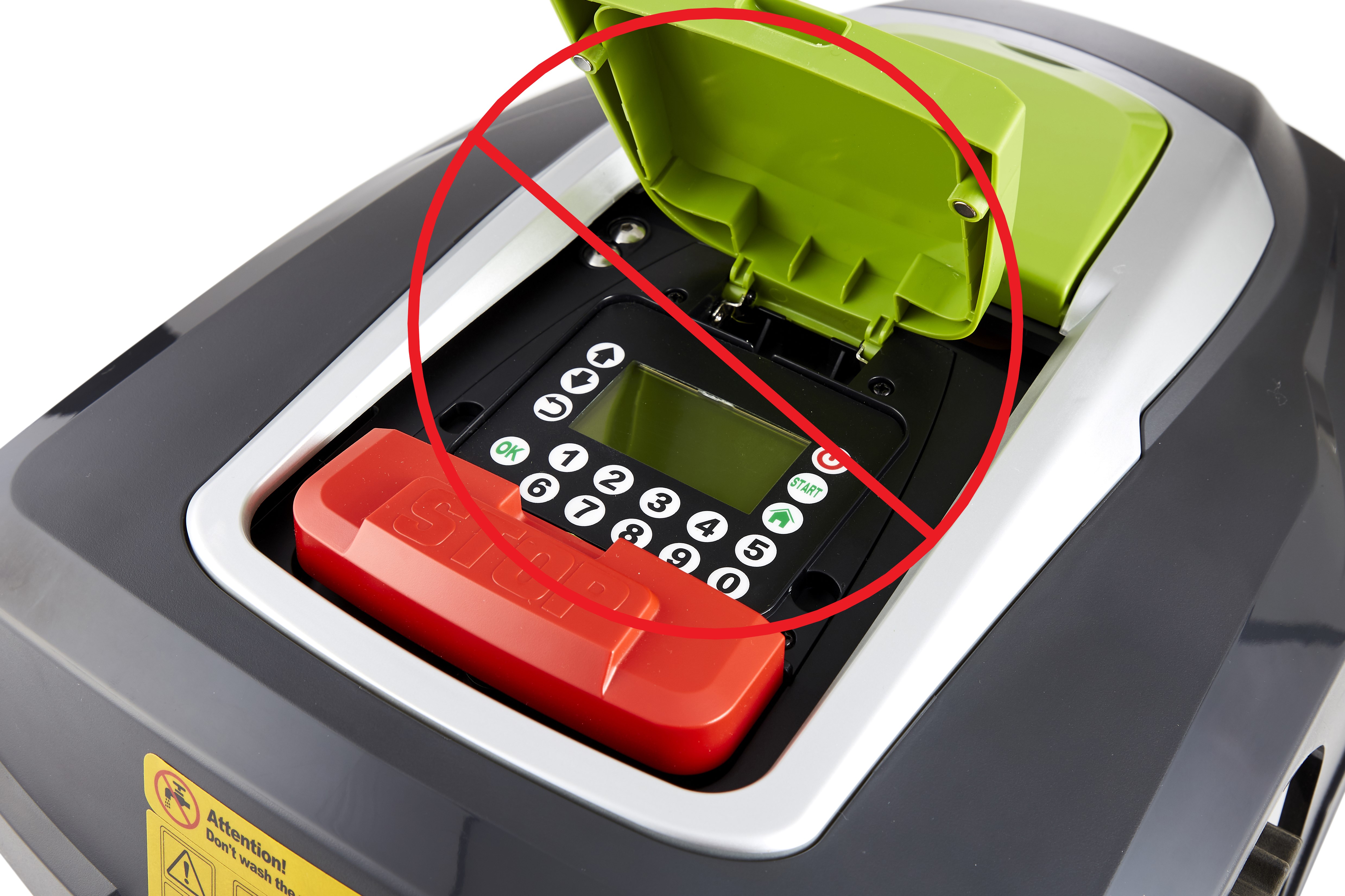

Important: Do not turn on the machine's power button on the keyboard and keep the lid closed.





See also the video on manual charging:

S models  https://youtu.be/j2Tj2QDqgHI

L and M models  https://youtu.be/h5ML2rRWVK0



Manuel opladning af batteriet 1.jpg Manuel opladning af batteriet 2.jpg



The lamp will not change to green immediately – it may take up to 1 hour



Note!

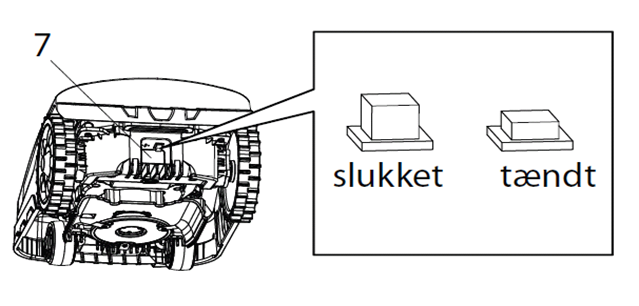

The robotic lawn mower reports a battery error if the main switch is in the off position and receives power from the charging station to turn on the display

Manuel opladning af batteriet 3.png
