Planning and Installation - Grouw M900 APP Control

Planning:

  • Make a sketch of the garden.
  • Mark the location of the charging station and the boundary wire path.
  • Be sure to outline all obstacles such as flower beds, terraces, trampolines, bushes, trees, garden ponds, and paths.

Distance to neighbour's cable:

  • Keep at least 160 cm distance from the neighbour's boundary wire, especially if they have a similar robotic lawn mower.
  • If the neighbour's robotic lawn mower is of a different brand, a greater distance may be necessary.

Installation of the boundary wire:

  • Lay the wire as an unbroken loop around the area to be mowed.
  • Take your time to carefully follow the instructions.

Robotic lawn mower operation:

  • The robotic lawn mower moves in a random pattern within the working area.
  • It changes direction when it detects the boundary wire or encounters a solid obstacle.

With this plan, you ensure that your robotic lawn mower operates optimally and covers the entire lawn without leaving wheel marks.

Planlægning og installation 1.png

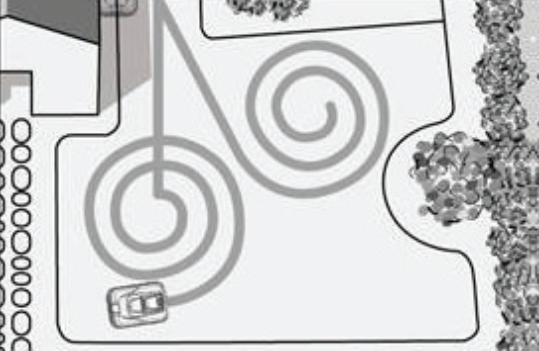

Improved coverage: When the robotic lawn mower detects the boundary wire a certain number of times, it moves a few metres away from the last detection point and moves in a spiral path. This ensures it covers areas it may have missed.

Planlægning og installation 2.png

Charging: When the robotic lawn mower needs charging, it automatically follows the boundary wire counterclockwise back to the charging station.
