Installation Test

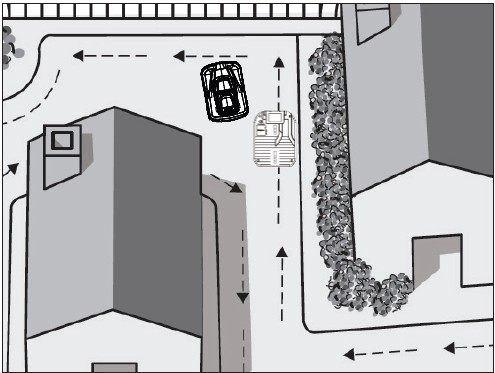

Placement: Place the robotic lawn mower within the working area close to the charging station.

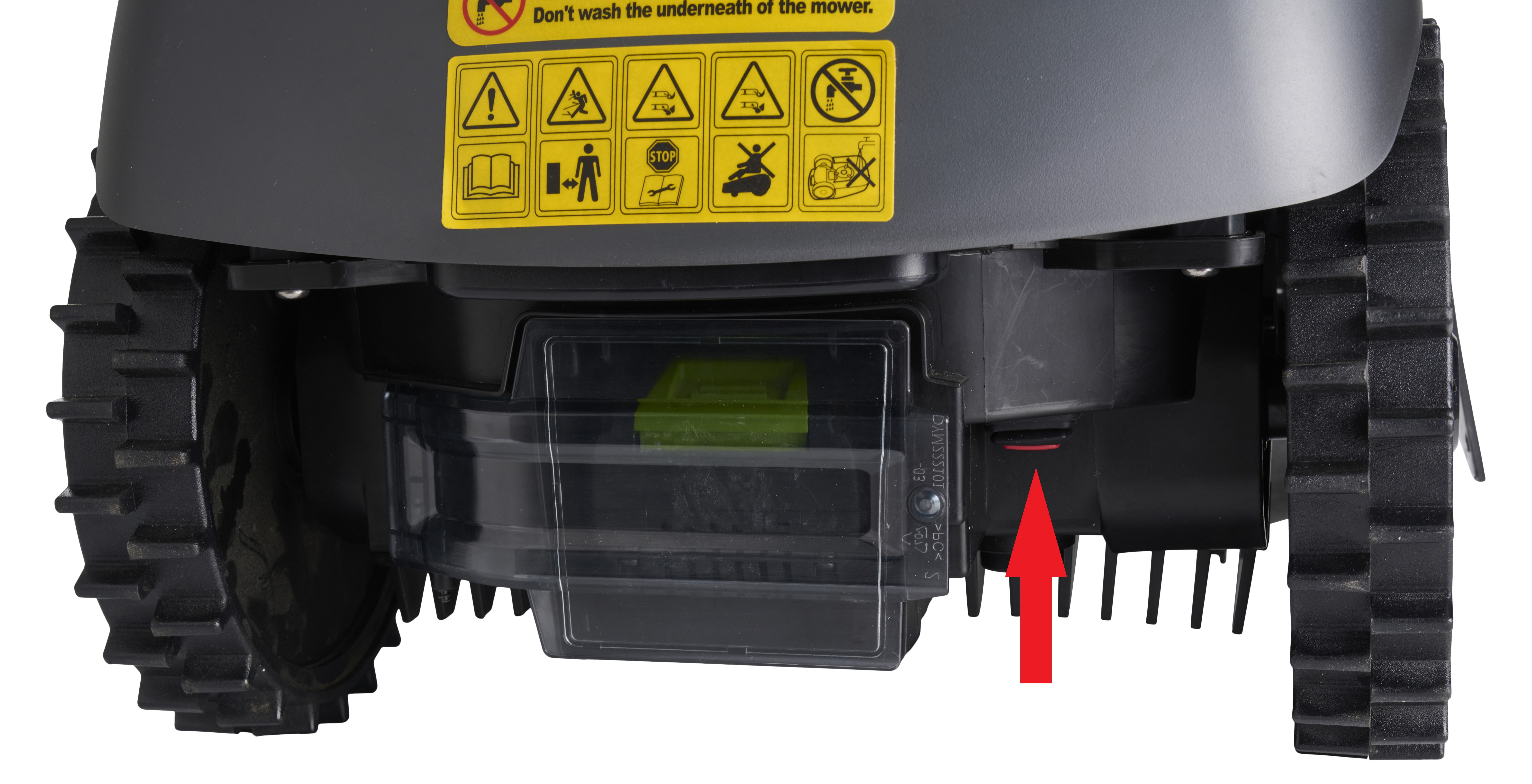

Powering On: Press the main switch on the underside of the robotic lawn mower to the ON position.
Activation: Press and hold the power button for approximately 3 seconds until the robotic lawn mower powers on.

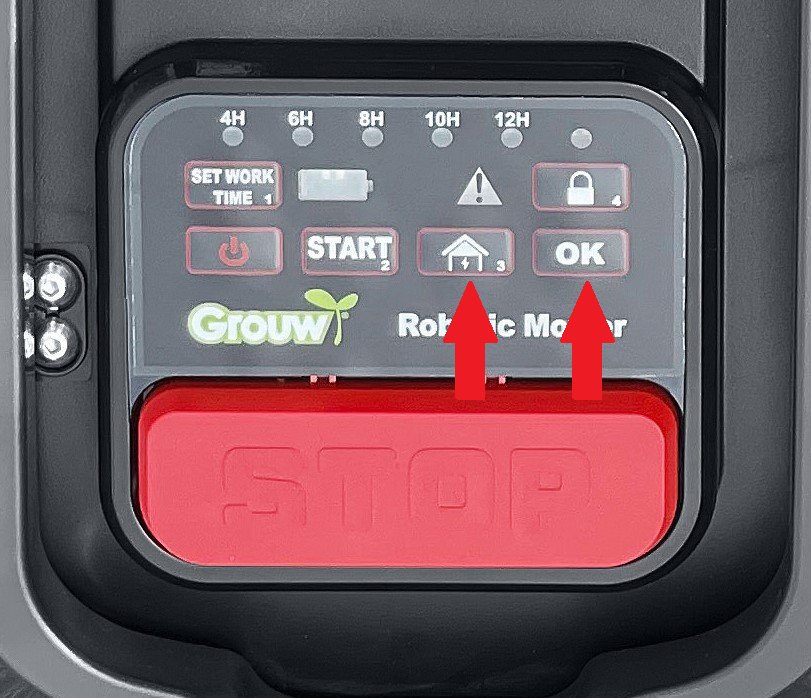

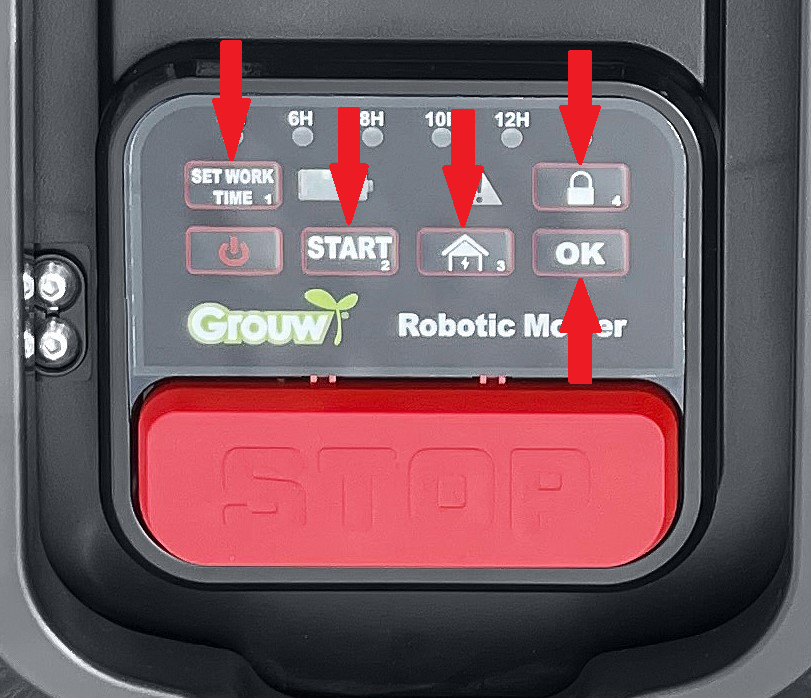

PIN Code: Enter the PIN code (1-2-3-4) and press “OK”. Then press “HOME” and “OK”.
Return to Charging Station: The robotic lawn mower follows the boundary cable back to the charging station.
Check: Ensure that the robotic lawn mower drives correctly onto the charging station and begins charging. Adjust the charging station if necessary.
Automatic Return to Charging Station:
- When you press the “HOME” and “OK” buttons.
- When the battery level is below 30%.
- If the temperature in the built-in control circuit becomes too high.
- The indicator light shines red during charging and green when fully charged. The robotic lawn mower will start again according to how it is programmed.
Overheating Protection:
- Charging is interrupted if the battery temperature is above 45 °C and resumes when the temperature has dropped.
Manual Charging:
- If the robotic lawn mower runs out of power before reaching the charging station, a manual charge must be performed.
See the user manual for more details on programming and manual charging.
- This guide applies to the following models:
17919 - Garden L1200m2 App Control
17923 - Garden M800m2 App Control
68059 - Adano 800WL
68130 - Adano 801WL
17935 - Grouw 600 App control
17936 - Grouw 900 App control
17937 - Grouw 1200 App control
17940 - Grouw S600
17941 - Grouw M900 App control
17945 - Grouw S400
17946 - Grouw S500 App control
17947 - Grouw L1200 App Control
17948 - Grouw M800 App Control
17949 - Grouw M600
