Installation Test
Placement: Place the robotic lawn mower within the working area close to the charging station.

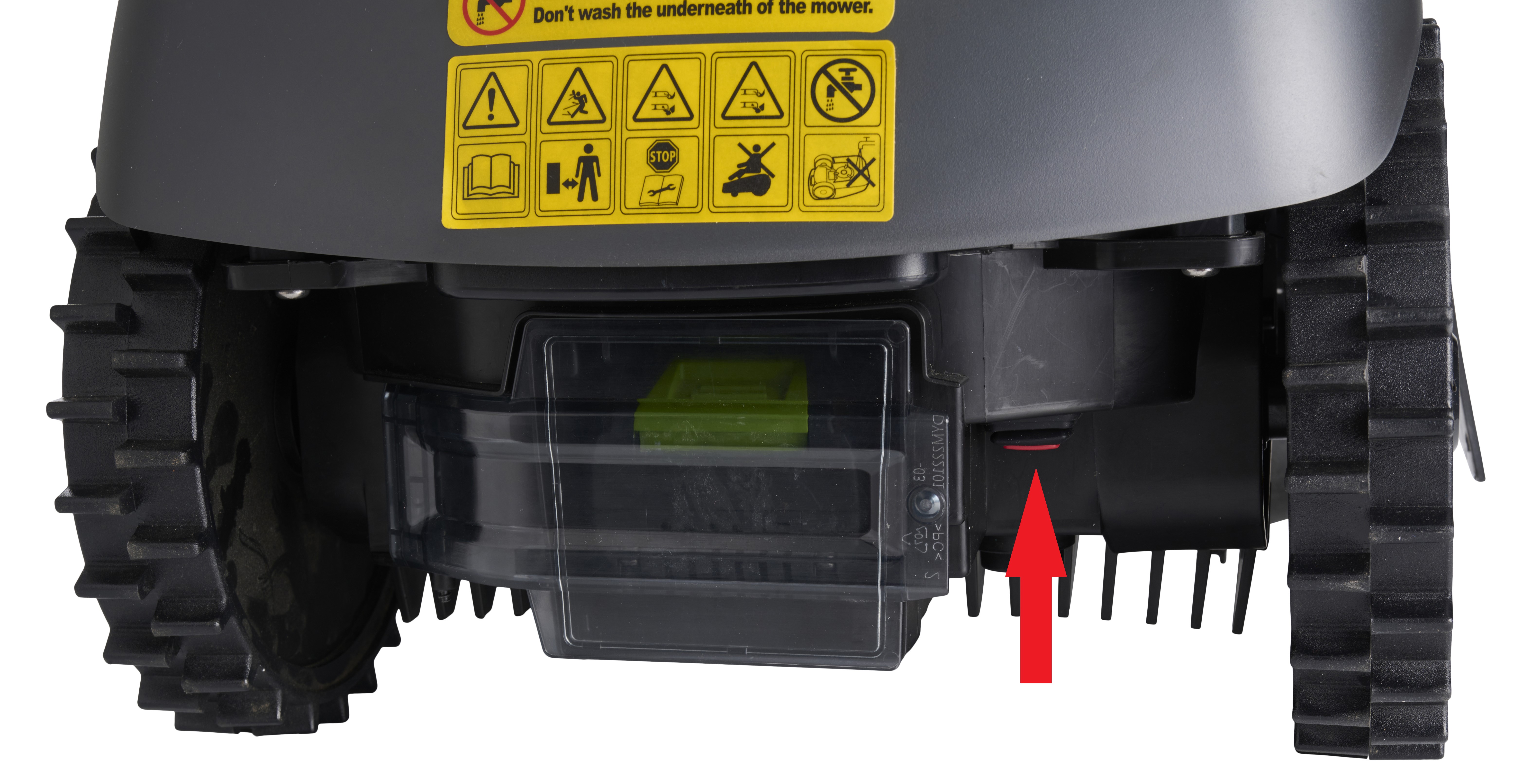

Power On: Press the main switch on the underside of the robotic lawn mower to the ON position.
Activation: Hold the power button for about 3 seconds until the robotic lawn mower turns on.

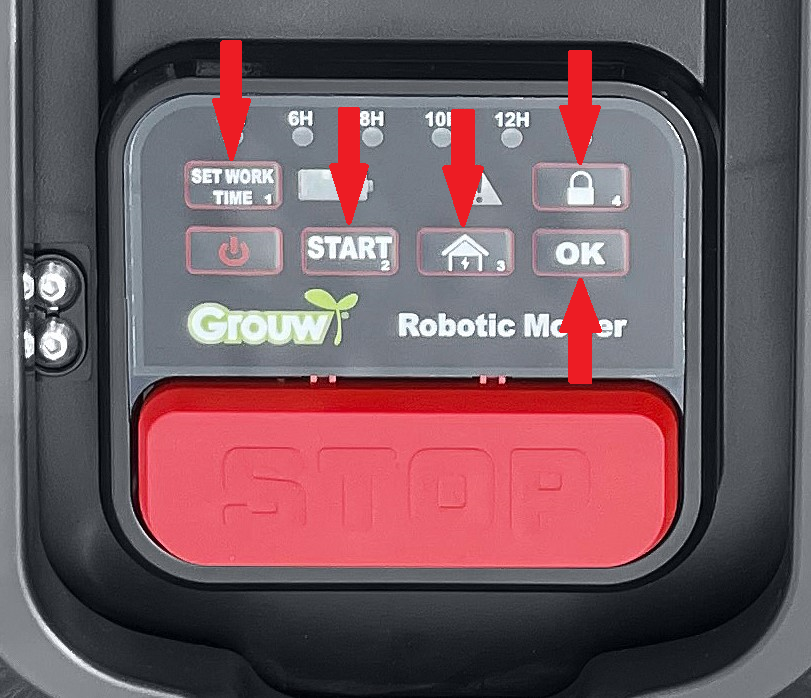

PIN code: Enter the PIN code (1-2-3-4) and press "OK". Then press "HOME" and "OK".
Return to Charging Station: The robotic lawn mower follows the boundary wire back to the charging station.
Check: Ensure that the robotic lawn mower correctly drives onto the charging station and starts charging. Adjust the charging station if necessary.
Automatic Return to Charging Station:

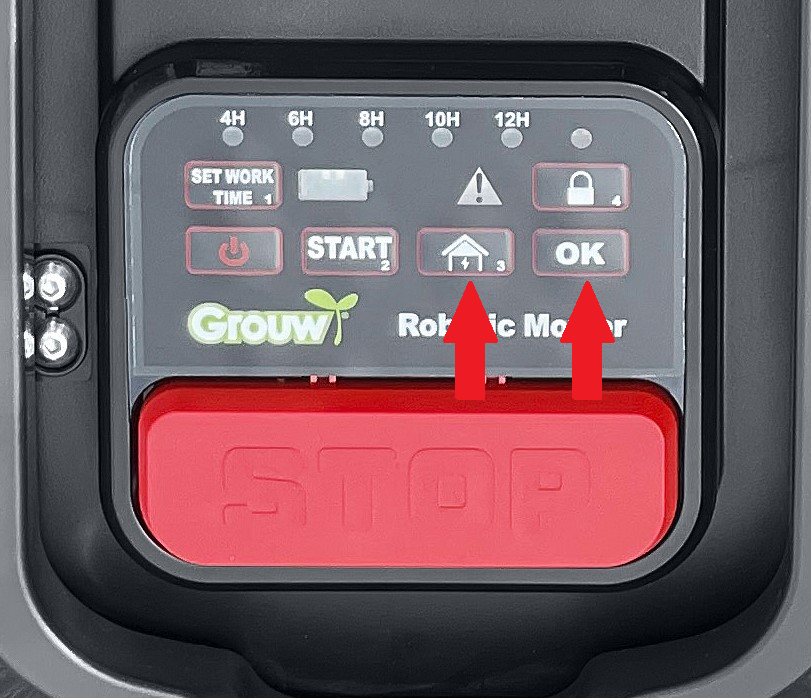

- When pressing the "HOME" and "OK" buttons.
- When the battery level is below 30%.
- If the temperature in the built-in control circuit becomes too high.
- The indicator light glows red during charging and green when fully charged. The robotic lawn mower resumes operation according to its programmed settings.
Overheating Protection:
- Charging is interrupted if the battery temperature exceeds 45 °C and resumes when the temperature has dropped.
Manual Charging:
- If the robotic lawn mower runs out of power before reaching the charging station, manual charging is required.
See the user manual for more details on programming and manual charging.
