Multizone Function - Grouw 900 APP Control

Multizone Function.

How to connect your robotic lawnmower to your smartphone or tablet:

1. Connection via Bluetooth:
   1.
      • Open the app on your smartphone or tablet.
      • Connect the robotic lawnmower via Bluetooth.

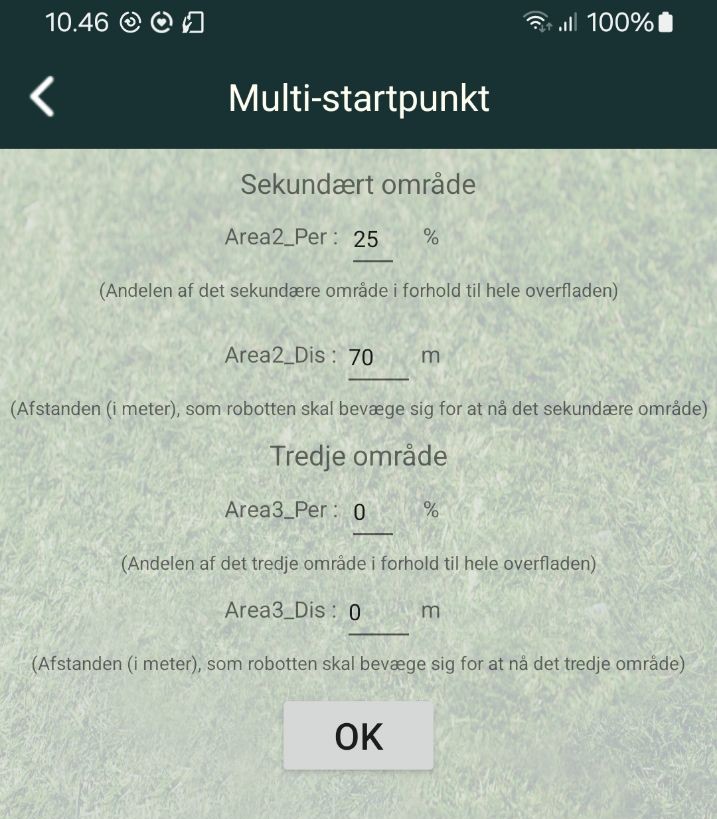

2. Setting the multizone function:
   1.
      • Area2_Per: Set how much zone 2 constitutes of the total lawn area.
      • Area2_Dis: Specify how many metres the robotic lawnmower should follow the boundary wire before it reaches zone 2. Measure the boundary wire halfway into zone 2 for accuracy.
      • Area3_Per and Area3_Dis: Set in the same way for zone 3.

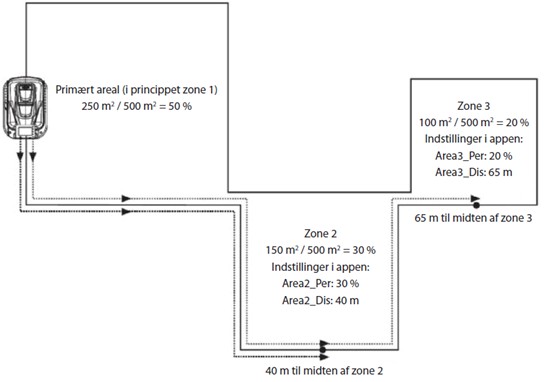

Example:

• Total lawn area: 500 m²
• Zone 1 (primary): 250 m²
• Zone 2: 150 m²
• Zone 3: 100 m²

Setting the multizone function:

• Zone 1: 50% (5 out of 10 times, mowing starts directly from the charging station).
• Zone 2: 30% (3 out of 10 times, it runs 40 metres along the boundary wire and starts in zone 2).
• Zone 3: 20% (2 out of 10 times, it runs 65 metres along the boundary wire and starts in zone 3).

Note: The robotic lawnmower does not mow the entire zone 1 before it runs to zone 2 if the starting point is in zone 2 or 3.

Edge trimming along the boundary wire:

The robotic lawnmower is factory programmed to automatically run along the boundary wire and mow the grass once a week.
