Start and stop the robotic lawn mower:
Set the main switch to the “ON” position, which is when the button is pressed up in the machine
Hold the “POWER” button (red circle in the image). The on/locked indicator light will illuminate red (yellow circle in the image), and the battery and error indicators will blink alternately (blue circle in the image). The robotic lawn mower is ready after approximately 4 seconds.

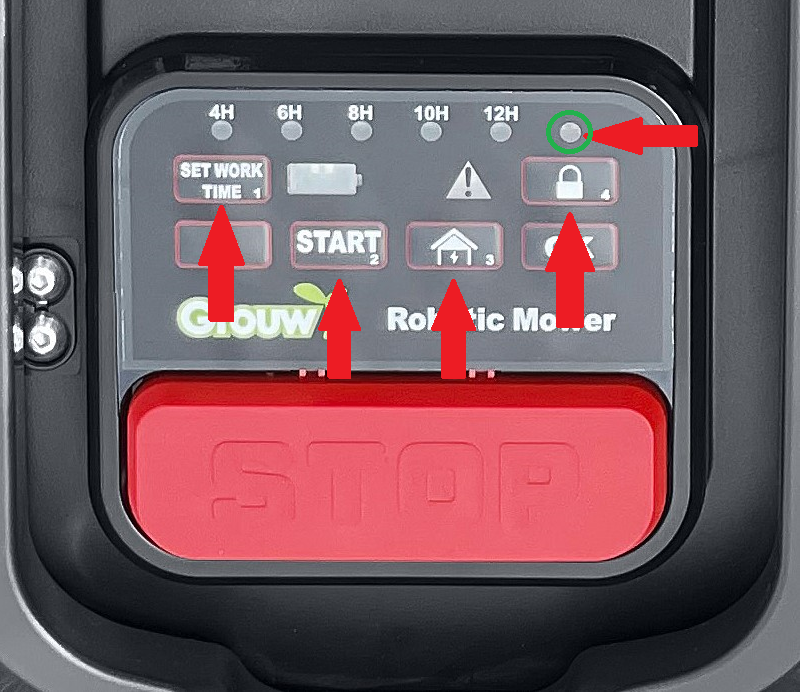

Enter the four-digit PIN code using the “1-4” buttons, and then press the “OK” button to unlock the control panel. If you have entered the correct PIN code, the on/locked indicator light will turn green. If you have entered an incorrect PIN code, the on/locked indicator light will blink red. Enter the correct PIN code. Press the “OK” button
Note! The PIN code is set from the factory to the combination 1-2-3-4. You can create your own PIN code - see the section - Change PIN code in the manual

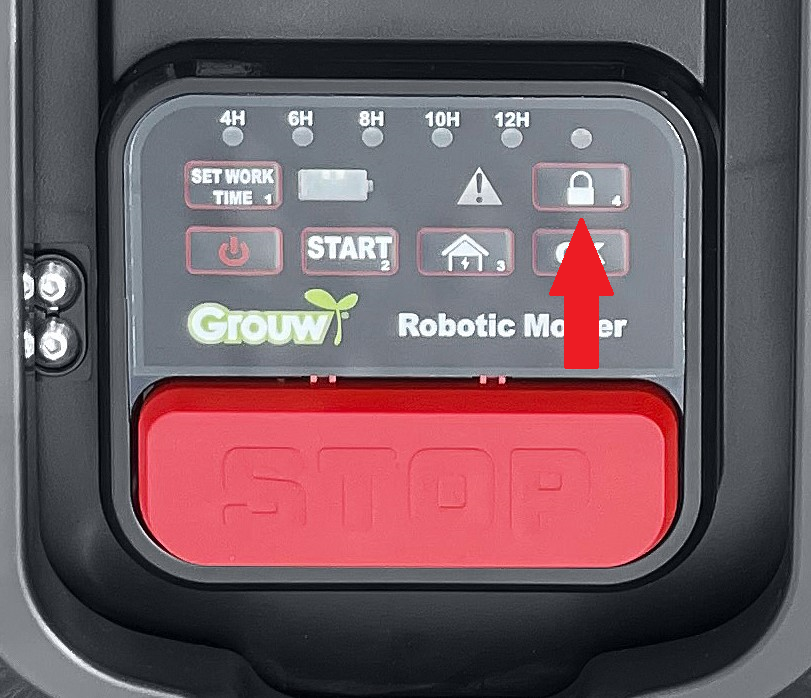

If you want to lock the control panel, press the “LOCK/4” button.

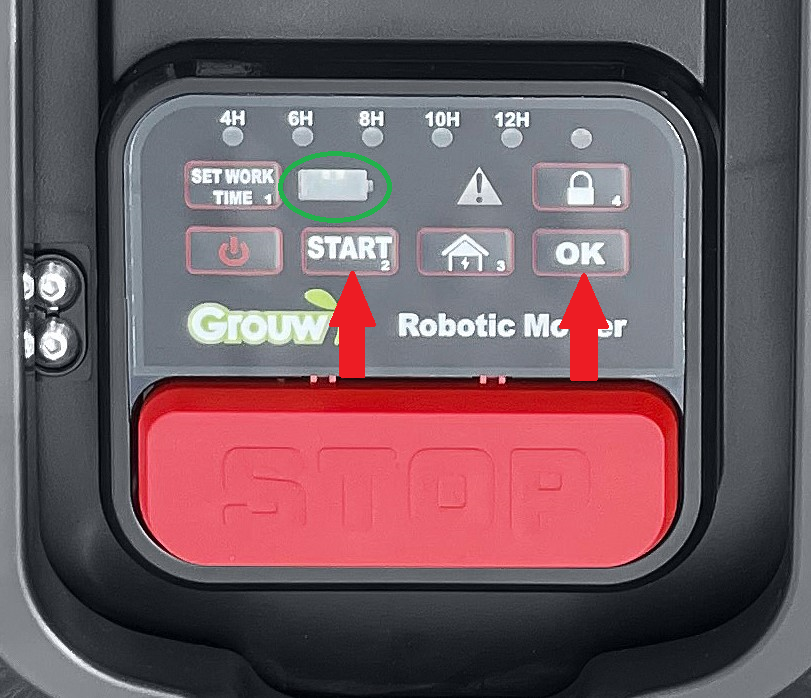

Press the “START/2” button, and then press the “OK” button. If the battery level is above 30%, the battery indicator light will illuminate green, and the robotic lawn mower will start mowing the lawn.

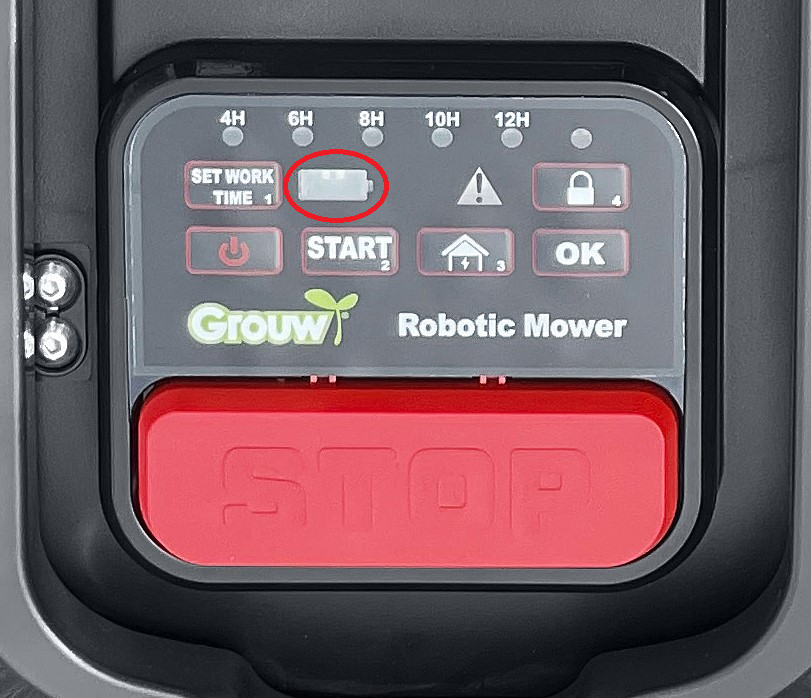

If the battery level is at 30% or lower, the battery indicator light will illuminate red, and the robotic lawn mower will automatically return to the charging station along the boundary wire.

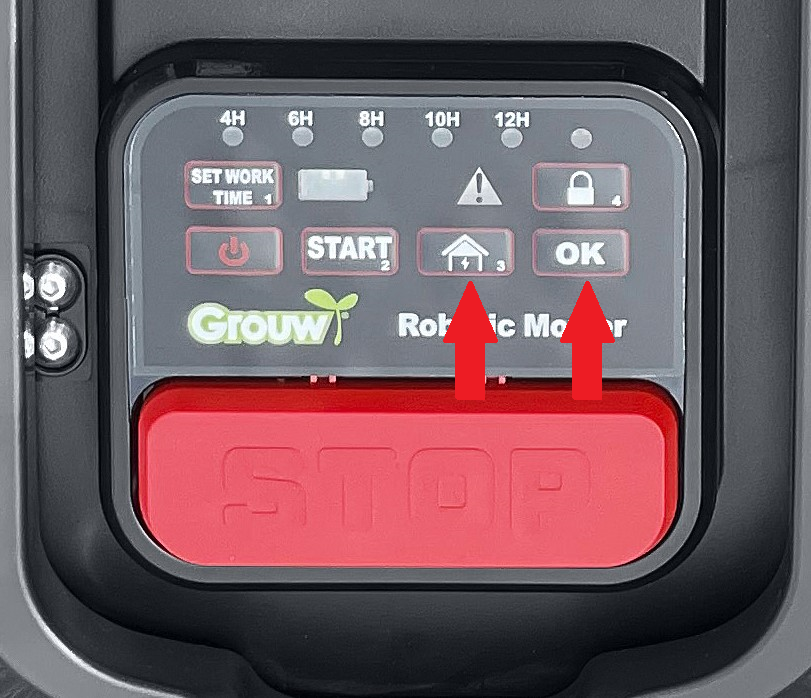

If you press the “HOME/3” button and then press the “OK” button, the robotic lawn mower will return to the charging station, regardless of the remaining battery capacity. If it is within the mowing time, it will charge and go out again. If you press the red STOP button, the robotic lawn mower will stop immediately.
