Planning and Installation - Adano 800WL 800m2

Planning:

  • Create a sketch of the garden.
  • Mark the location of the charging station and the path of the boundary wire.
  • Ensure to frame all obstacles such as flower beds, terraces, trampolines, bushes, trees, ponds, and paths.

Distance to Neighbour's Wire:

  • Maintain at least 160 cm distance from the neighbour's boundary wire, especially if they have a similar robotic lawn mower.
  • If the neighbour's robotic lawn mower is of a different brand, a greater distance may be necessary.

Installation of the Boundary Wire:

  • Lay the wire in an unbroken loop around the area to be mowed.
  • Take your time to follow the instructions carefully.

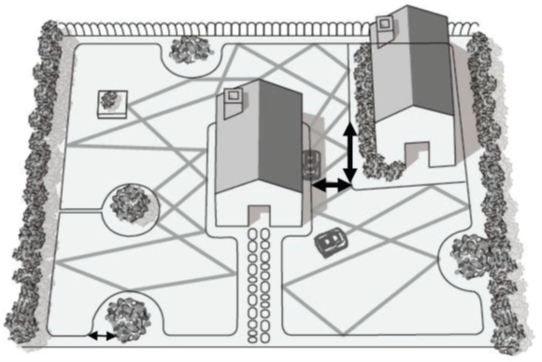

Function of the Robotic Lawn Mower:

  • The robotic lawn mower operates in a random pattern within the working area.
  • It changes direction when it detects the boundary wire or encounters a solid obstacle.

With this plan, you ensure that your robotic lawn mower operates optimally and covers the entire lawn without leaving wheel tracks.

Planlægning og installation 1.png

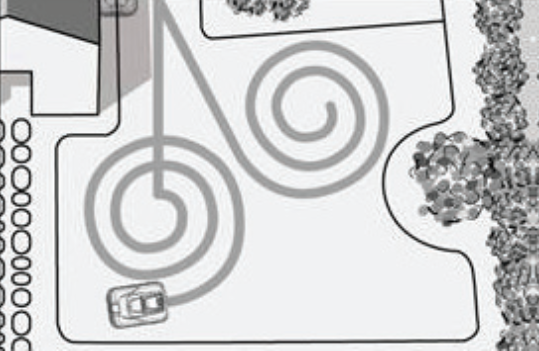

Improved Coverage: When the robotic lawn mower detects the boundary wire a certain number of times, it moves a few metres away from the last detection point and follows a spiral path. This ensures that it covers areas it may have overlooked.

Planlægning og installation 2.png

Charging: When the robotic lawn mower needs to recharge, it automatically follows the boundary wire counter-clockwise back to the charging station.
