Cleaning the Robot - Grouw CLEVR 1000m2

Cleaning and Replacement of Spare Parts for Robotic Lawn Mower

Cleaning:

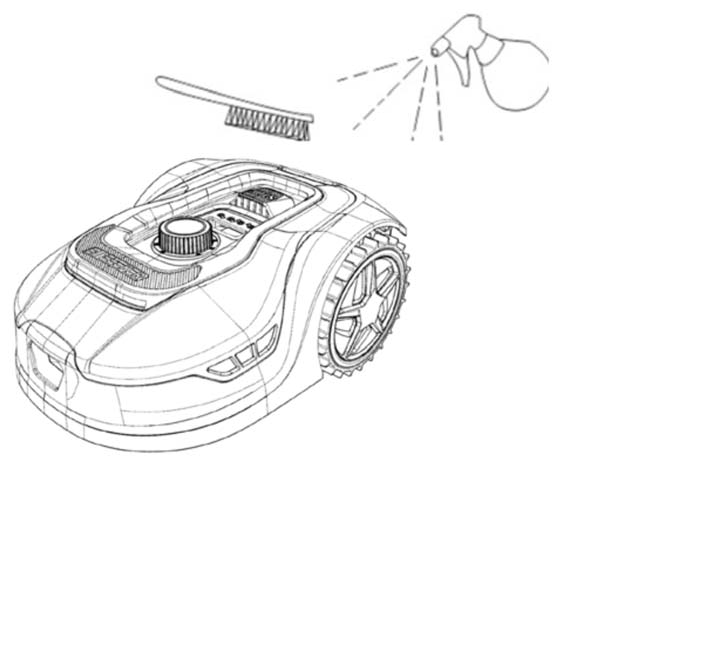

• Plastic Covers:
  • Use a soft brush to remove grass and dirt.
  • Use a water spray or damp cloth if necessary.
  • Avoid high-pressure cleaners to protect electronics and battery.

• Underside:
  • Wear work gloves.
  • Clean at least once a month, especially the blades.
  • Turn off the robot first.
  • Lay the robot on its side on a soft surface.
  • Use a soft brush or plastic scraper to remove grass.
  • Check that the blades and front wheel can rotate freely.
• Charging Station:
  • Clean the charging station regularly.
  • Remove grass and soil from the cutting deck.
  • Trim the grass around the charging station with a strimmer.
  • Check and clean the charging contacts every two months with fine sandpaper or steel wool.

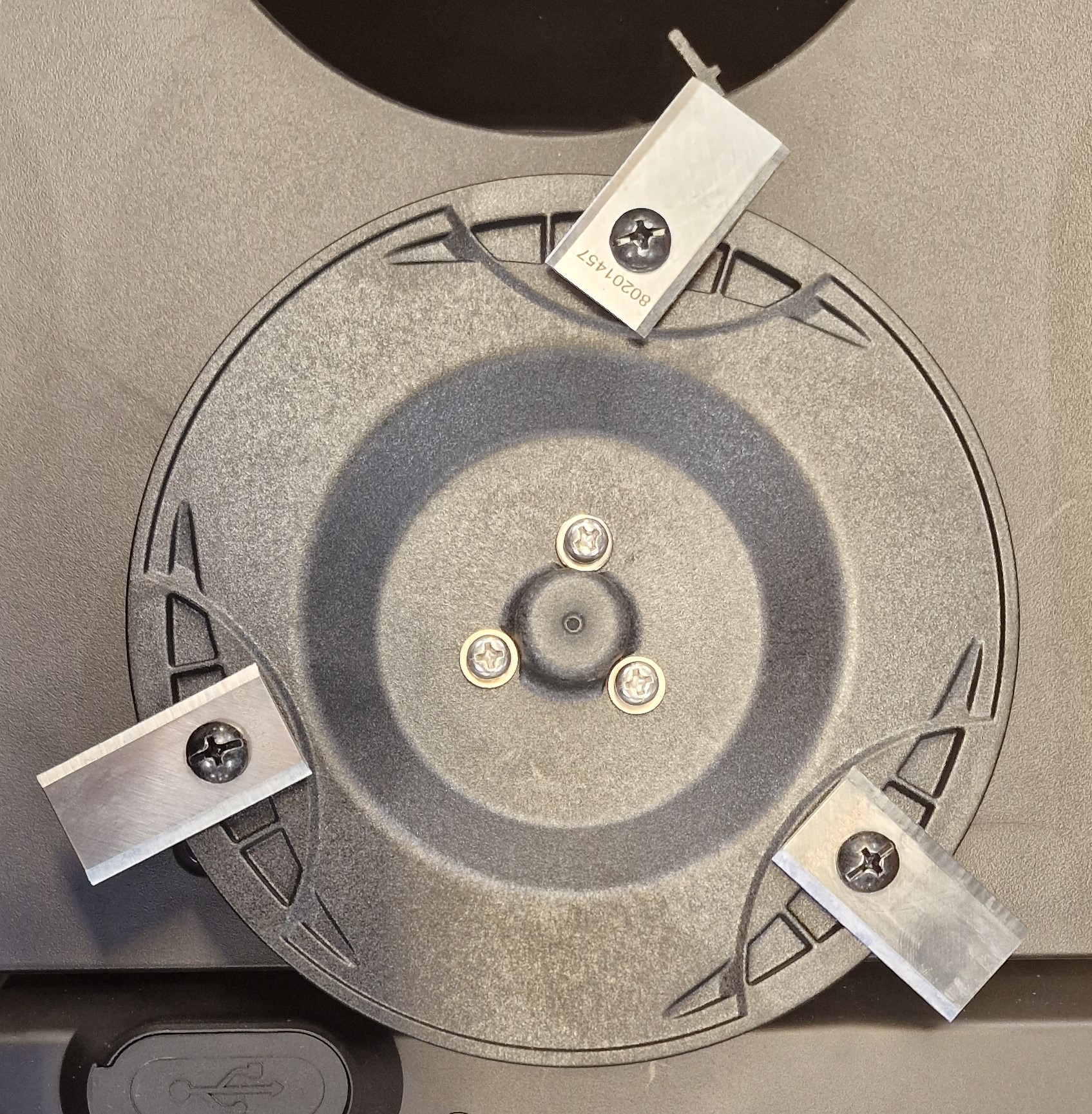

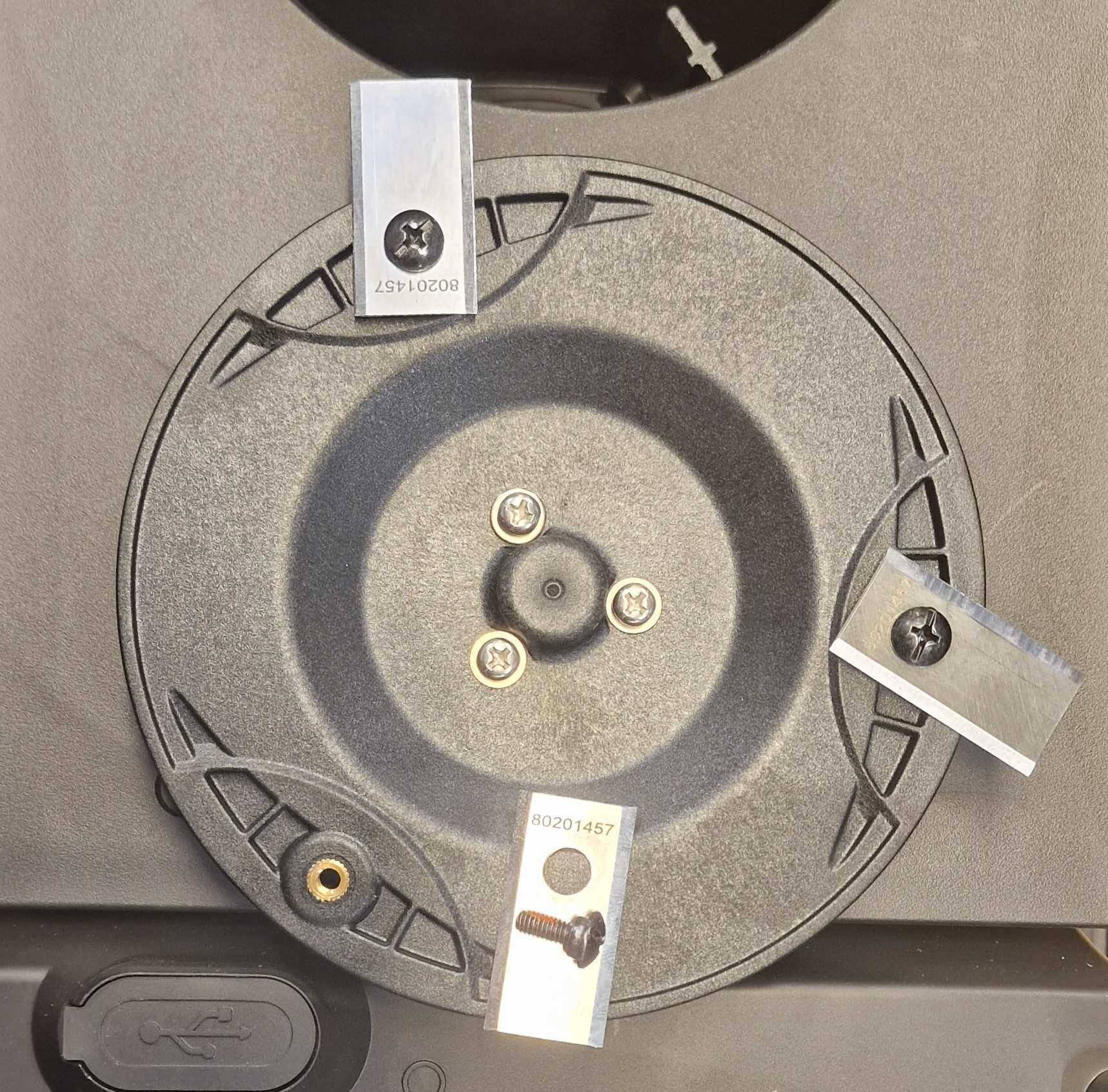

Blade Replacement:

• Replace all blades and screws after each season or more often if necessary.
• Use a star screwdriver.
• Turn off the robot before replacement.
• Loosen the screw, remove dirt and grass residue.
• Replace the blades with new ones and tighten the screws properly.
• Change all 3 blades at the same time to avoid imbalance.
• Check the blade screws during rotation.

Important:

• Regular cleaning is essential for optimal performance.
• Issues caused by lack of cleaning are not covered by warranty.
• Only use original blades.
