Connection sleeve for break or extension of cable



Use a waterproof connection sleeve (silicone sleeve) when repairing or extending the boundary cable.

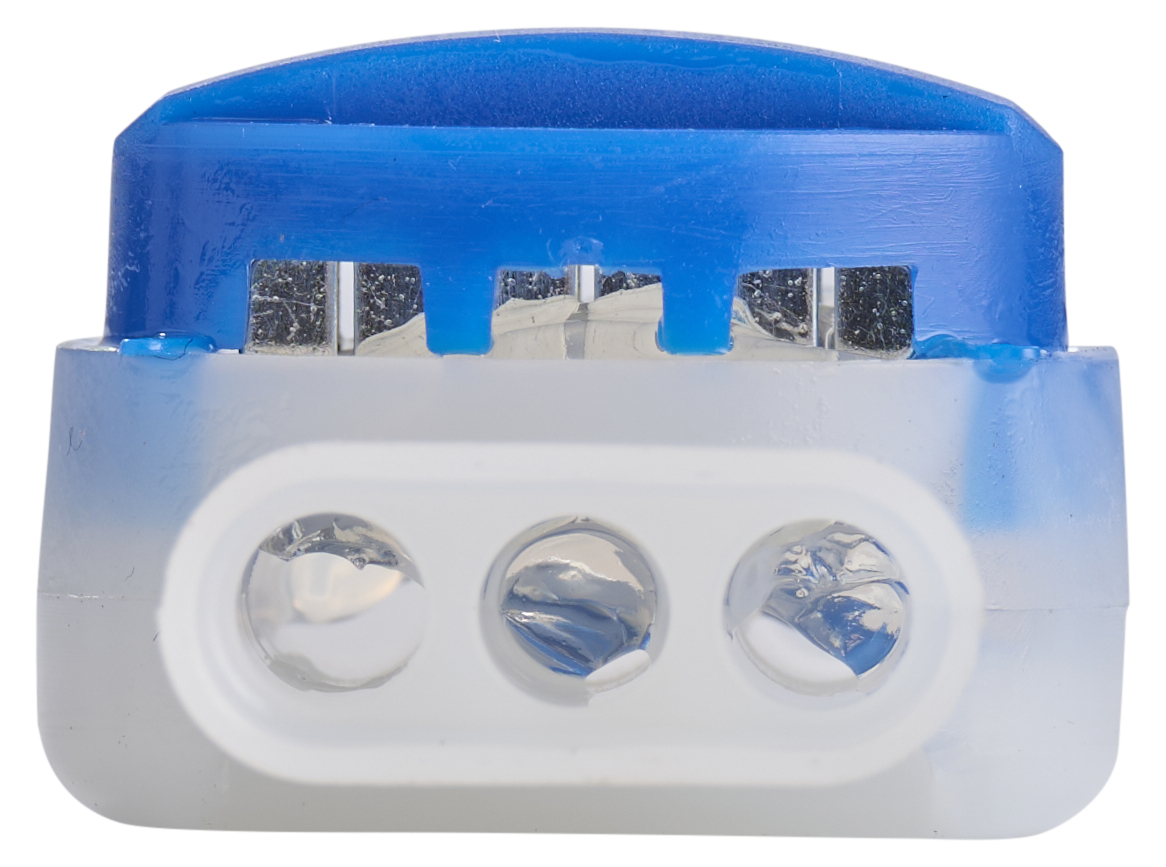

Samlemuffer 1.jpg

Do not strip the wire before inserting it into the connection sleeve.

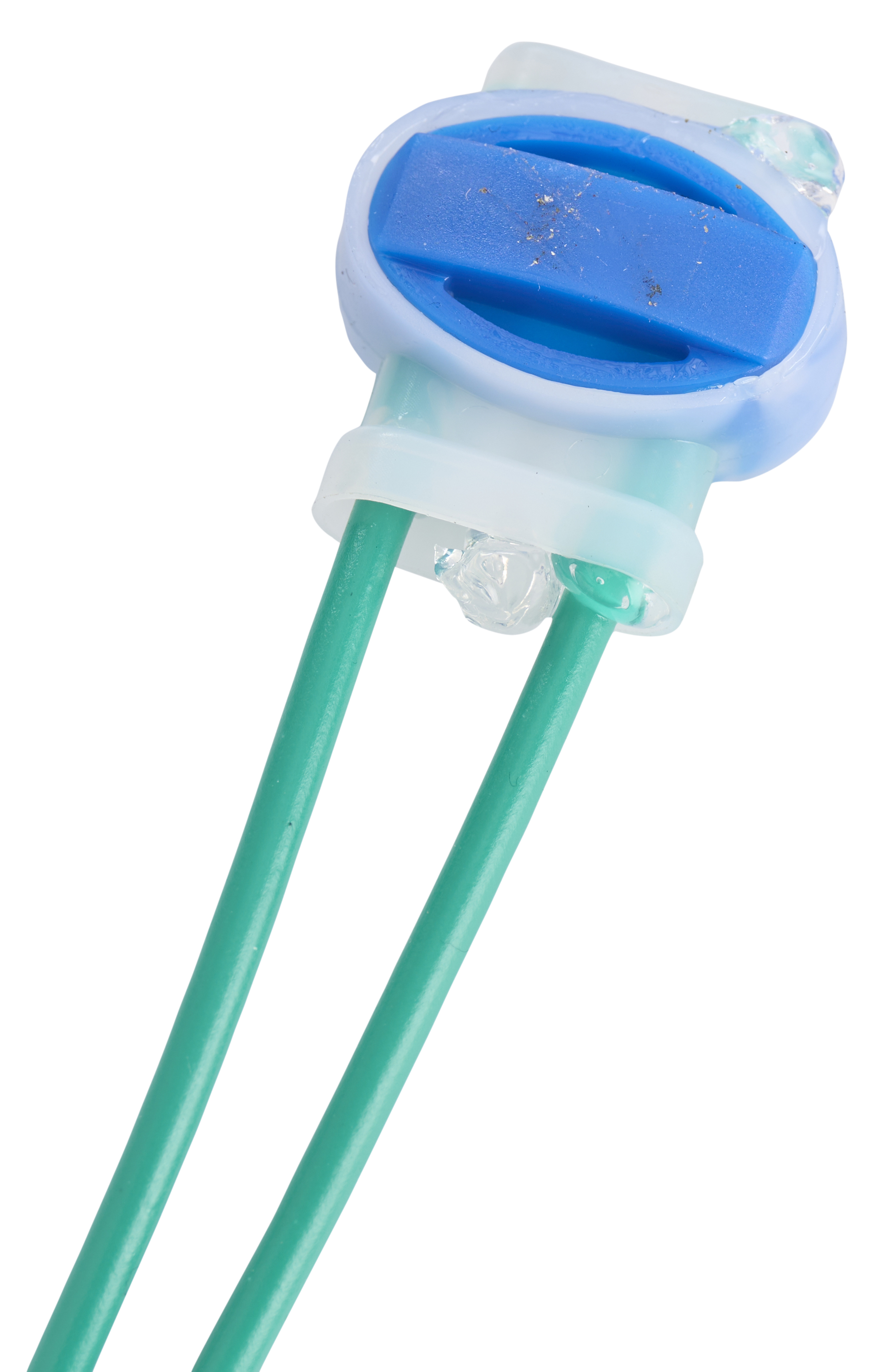

Insert the wire into the connection sleeve, where the pins will penetrate the insulation.

Samlemuffer 2.jpg

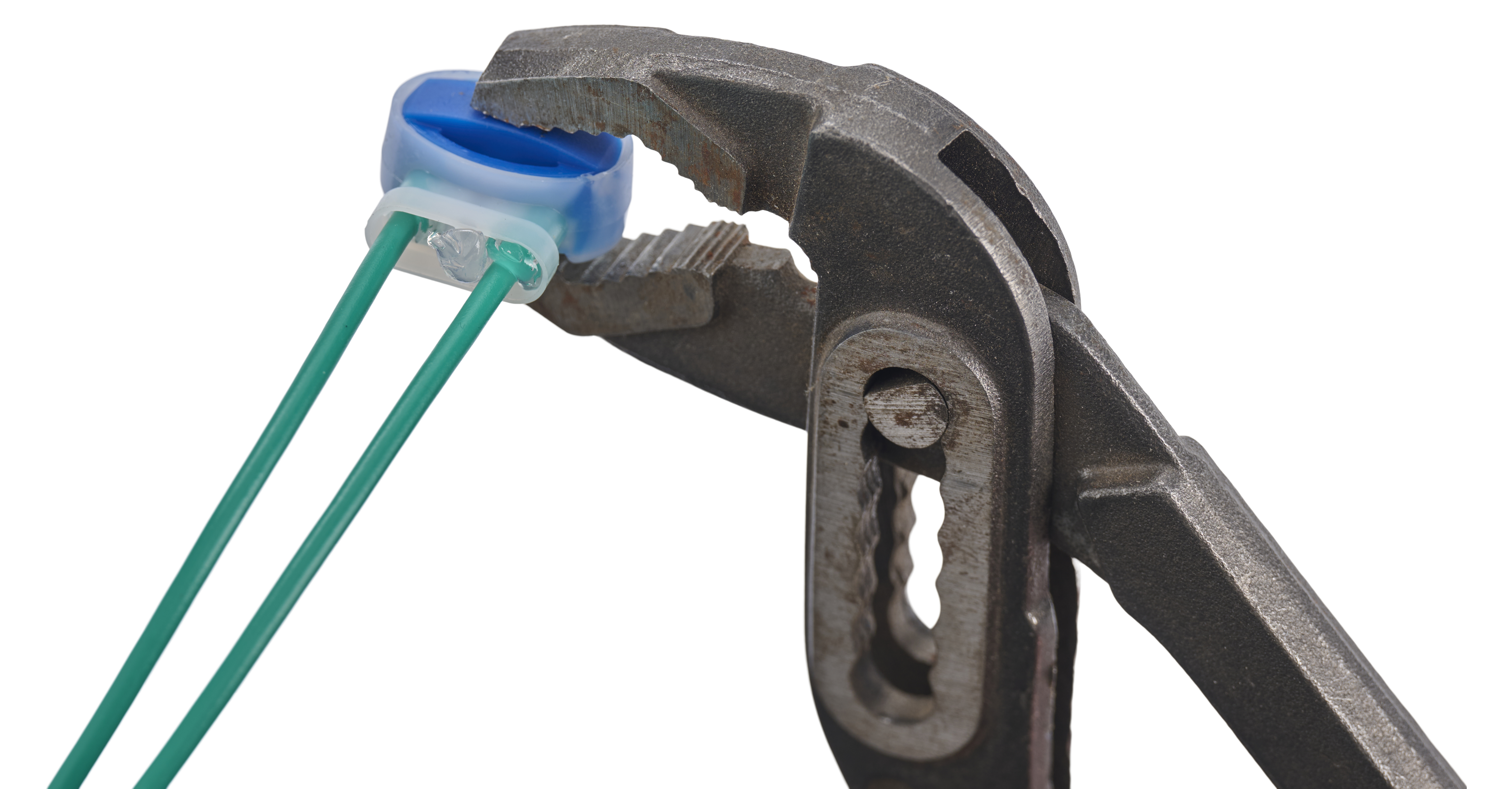

Press down the blue piece to seal the connection sleeve. A small amount of silicone will come out.

Samlemuffer 3.jpg

Bury the connection sleeve in the lawn to prevent the blades from cutting the boundary wire.
