Understanding the Boundary Wire
The boundary wire (edge wire) defines the mower's working area and ensures efficient operation by preventing it from leaving the designated area.
It creates an electromagnetic signal that is detected by the mower's sensors.
Key Components:
- Boundary Wire: Installed along the perimeter of the working area.
- Signal Generator: Located in the charging station; emits the boundary signal.
- Connectors and pegs: Used to secure the wire in place.
Installation Checklist:
- Plan the layout:
- Identify obstacles such as trees, flower beds, or paths.
- Avoid sharp angles; use gentle curves at corners.
- Mark off designated areas such as pools or steep slopes.
- Install the wire:
- Lay the wire flat on the ground, bury it, or place it under paving stones if necessary (up to 5 cm deep).

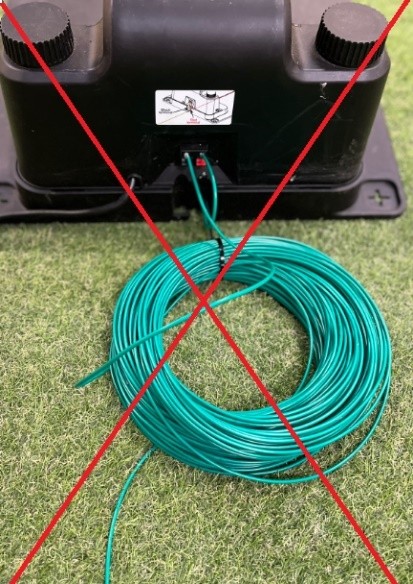

- Ensure a complete loop to the charging station.
- Use pegs to secure the wire at regular intervals (every 30-50 cm).

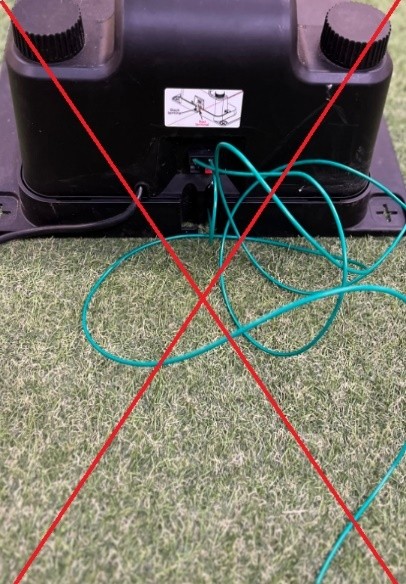

- Ensure there are no loose sections to prevent the mower from getting stuck.
- Be careful not to damage the wire when hammering in the pegs. Excessive hammering can cut the wire and create faults.
- Connect to the station:

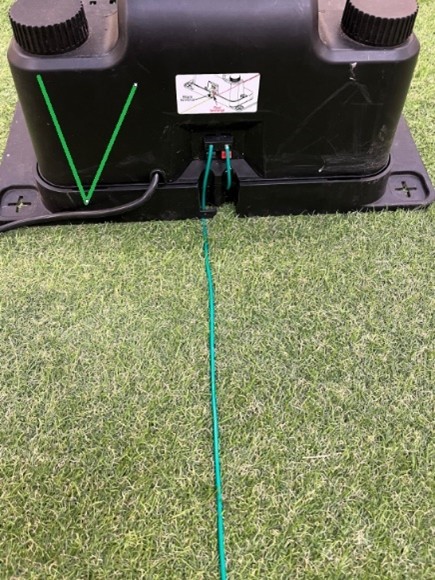

- Connect the ends of the boundary wire to the designated ports on the charging station (follow IN and OUT, and ensure the station is positioned correctly).
- Test for a stable signal before starting the mower – the charging station indicator should light up green.
