Connector - Garden 1200m2 APP Control

Connector in case of breakage or extension of cable

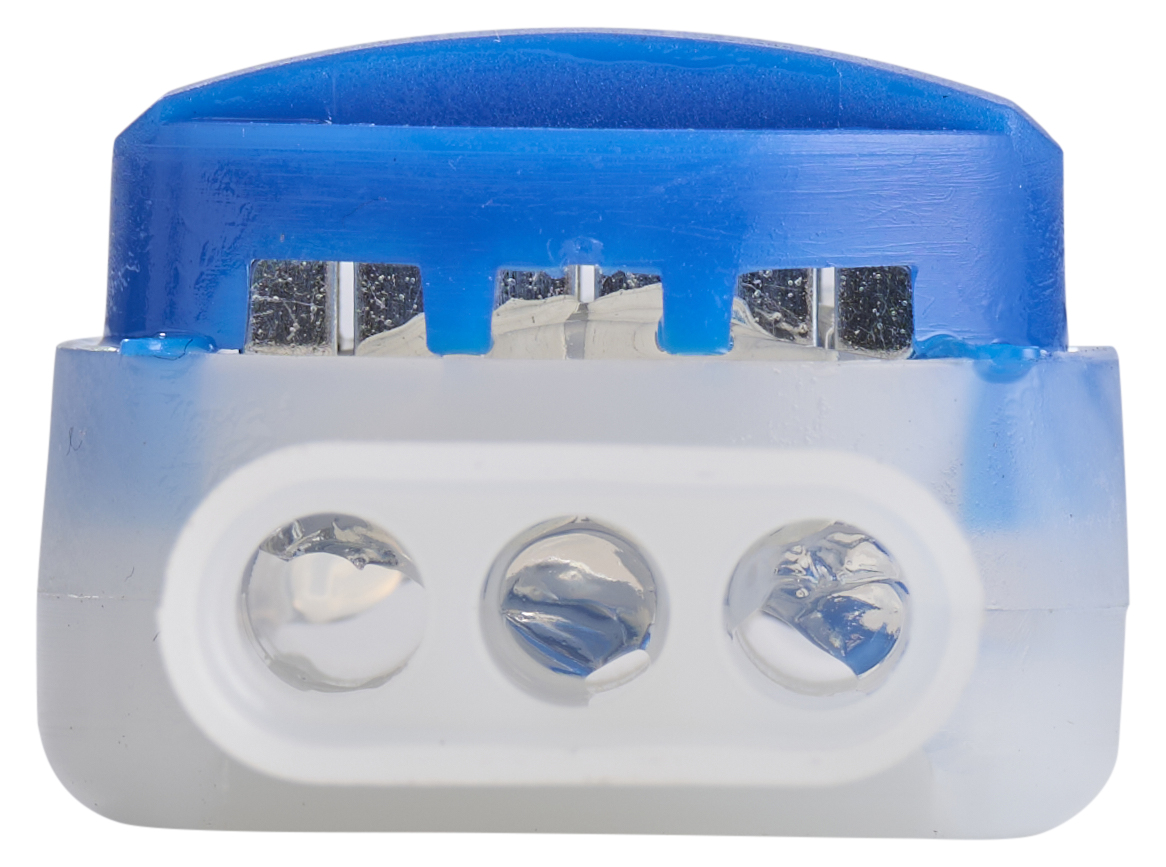

Use a waterproof connector (silicone connector) when repairing or extending the boundary cable.

Samlemuffer 1.jpg

Do not strip the wire before inserting it into the connector.

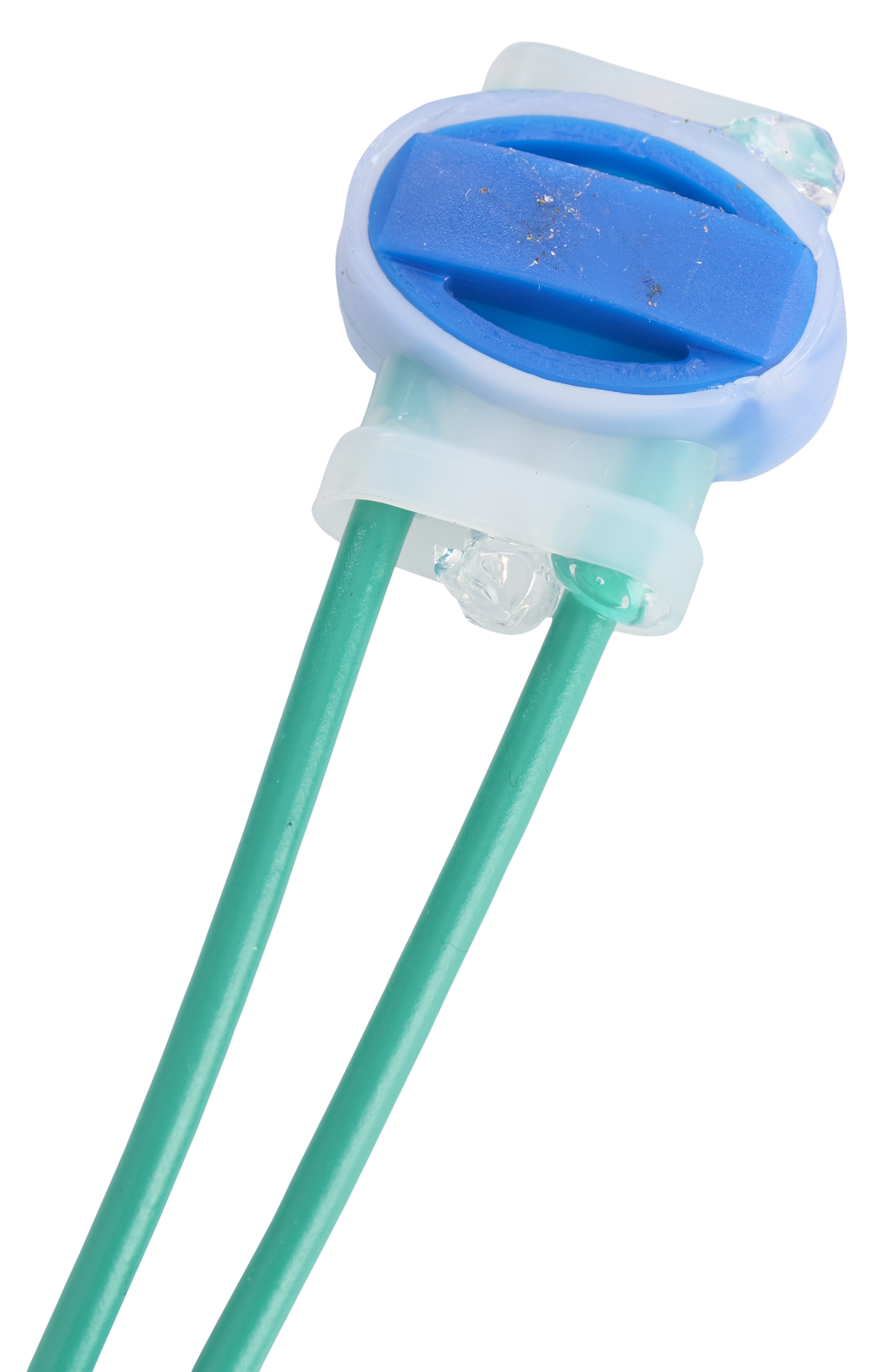

Insert the wire into the connector, where the pins will penetrate the insulation.

Samlemuffer 2.jpg

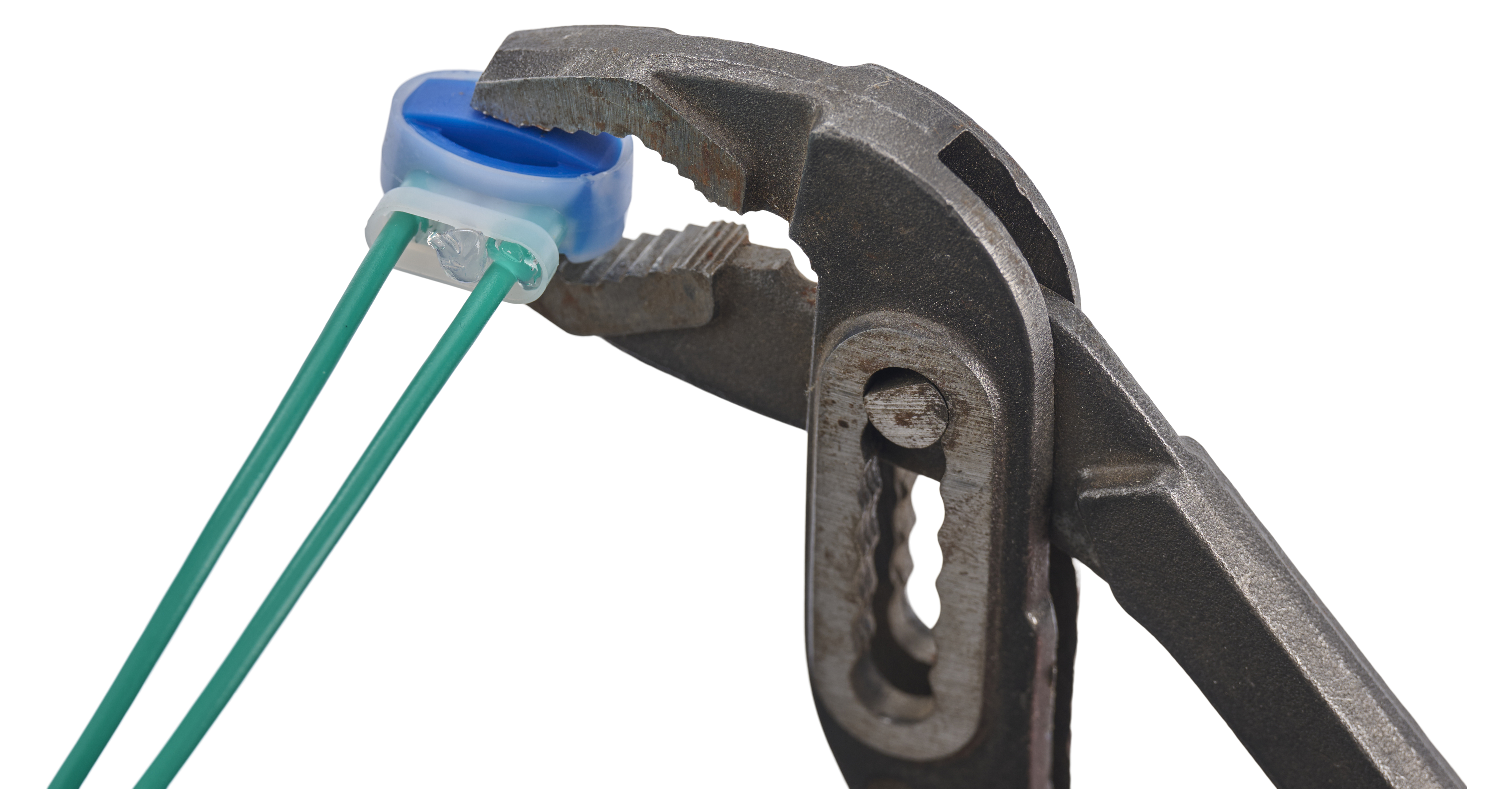

Press the blue piece down to seal the connector. A little silicone will come out.

Samlemuffer 3.jpg

Bury the connector in the lawn to prevent the blades from cutting the boundary wire.
