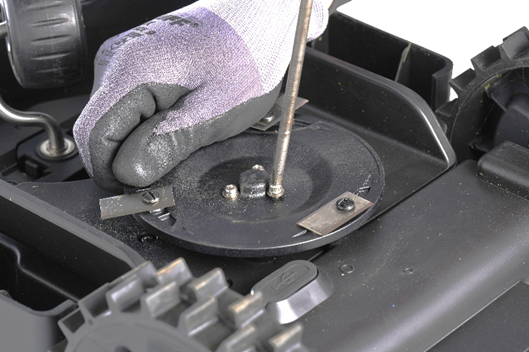

Before attempting adjustment, repair, or replacement of the battery, blades, or other spare parts, it is important that the robot is completely turned off and that safety equipment such as protective gloves and safety glasses are used.
The battery's lifespan depends on workload, maintenance, and winter storage. Under normal conditions, the lifespan will be up to 3-5 years. The battery is replaced by following these steps:
- Turn the robot upside down.
- Remove all grass and dirt around the battery cover before removing it.

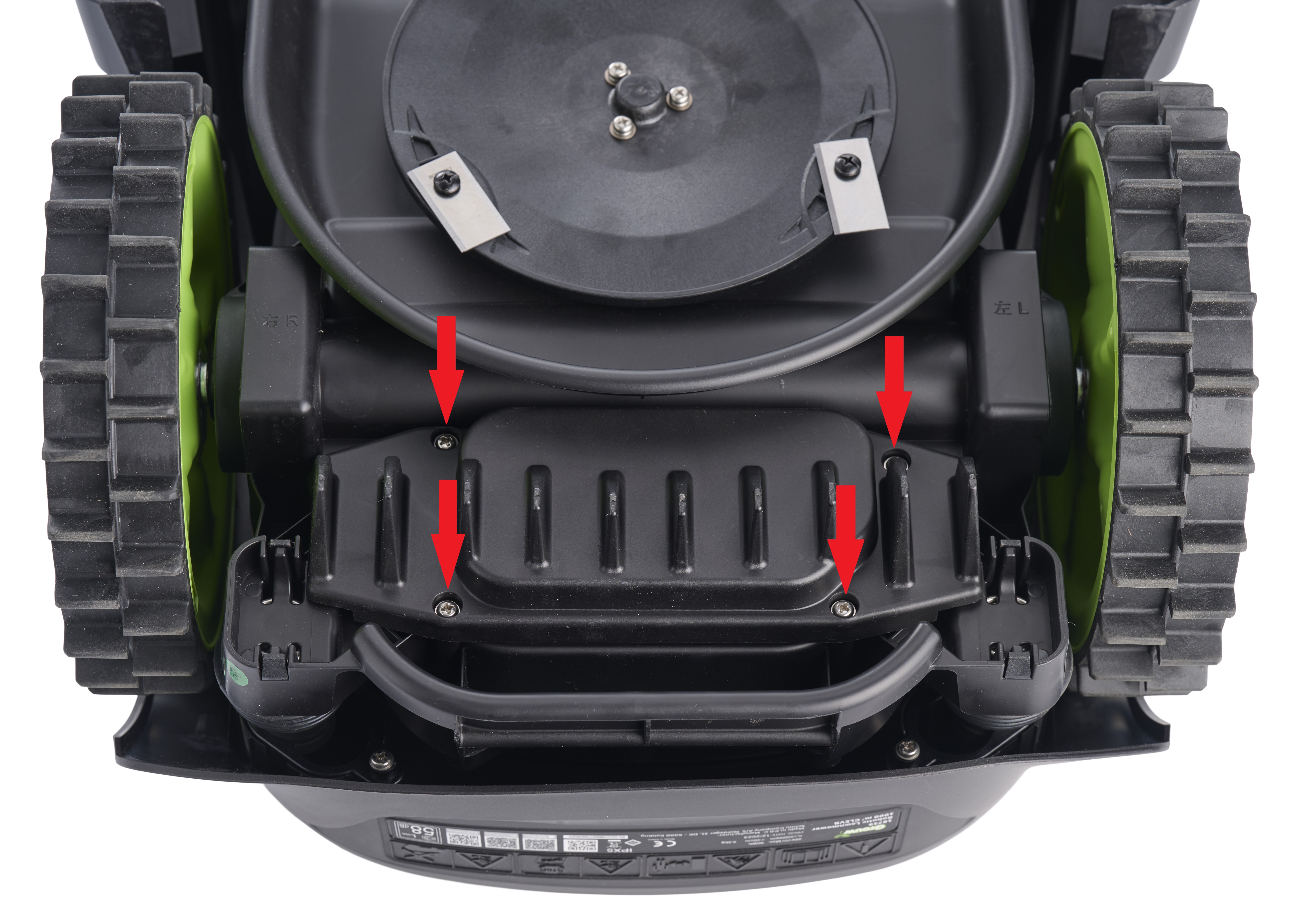

- Unscrew the screws holding the battery cover in place. Remove the battery cover.

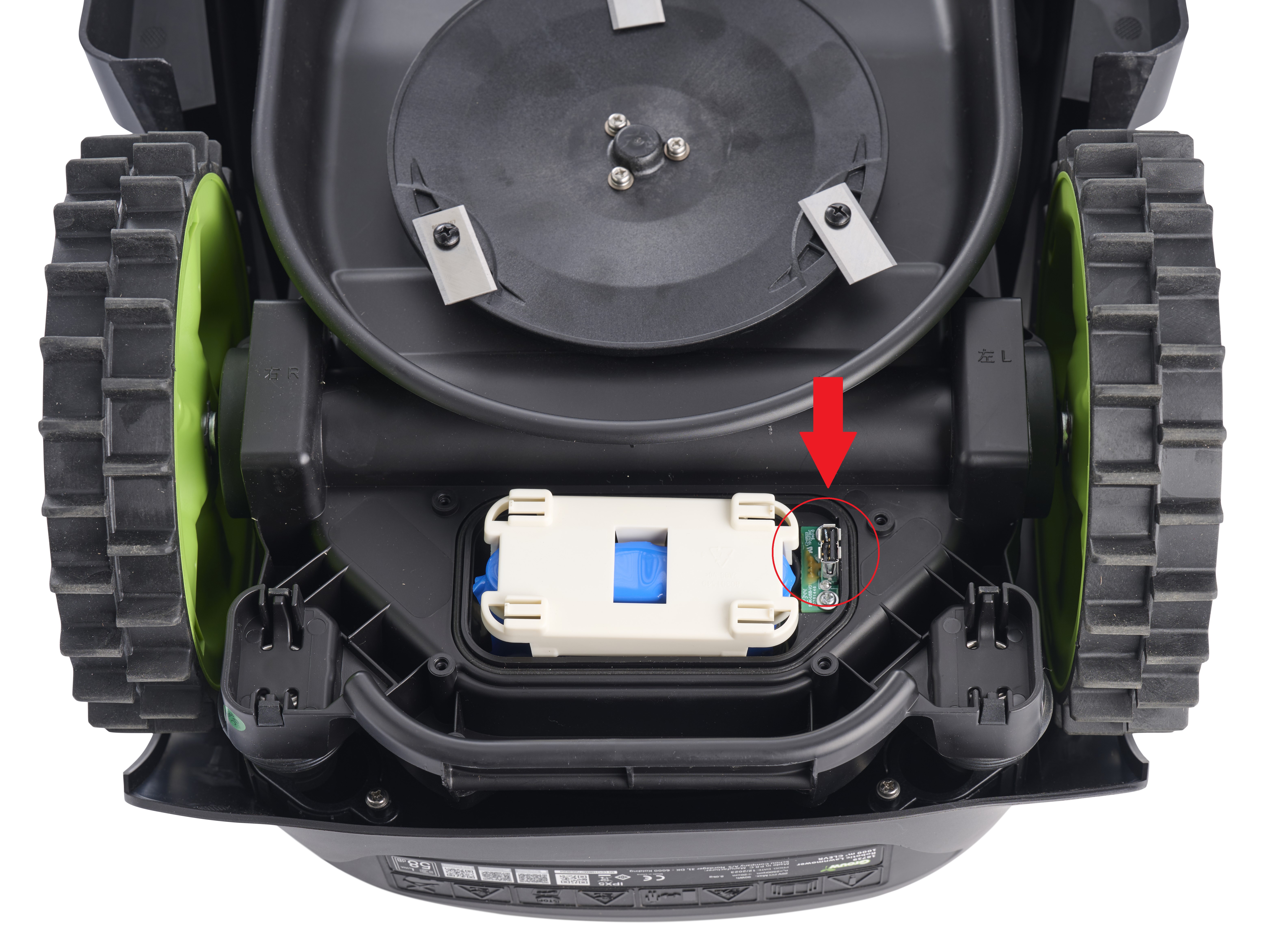

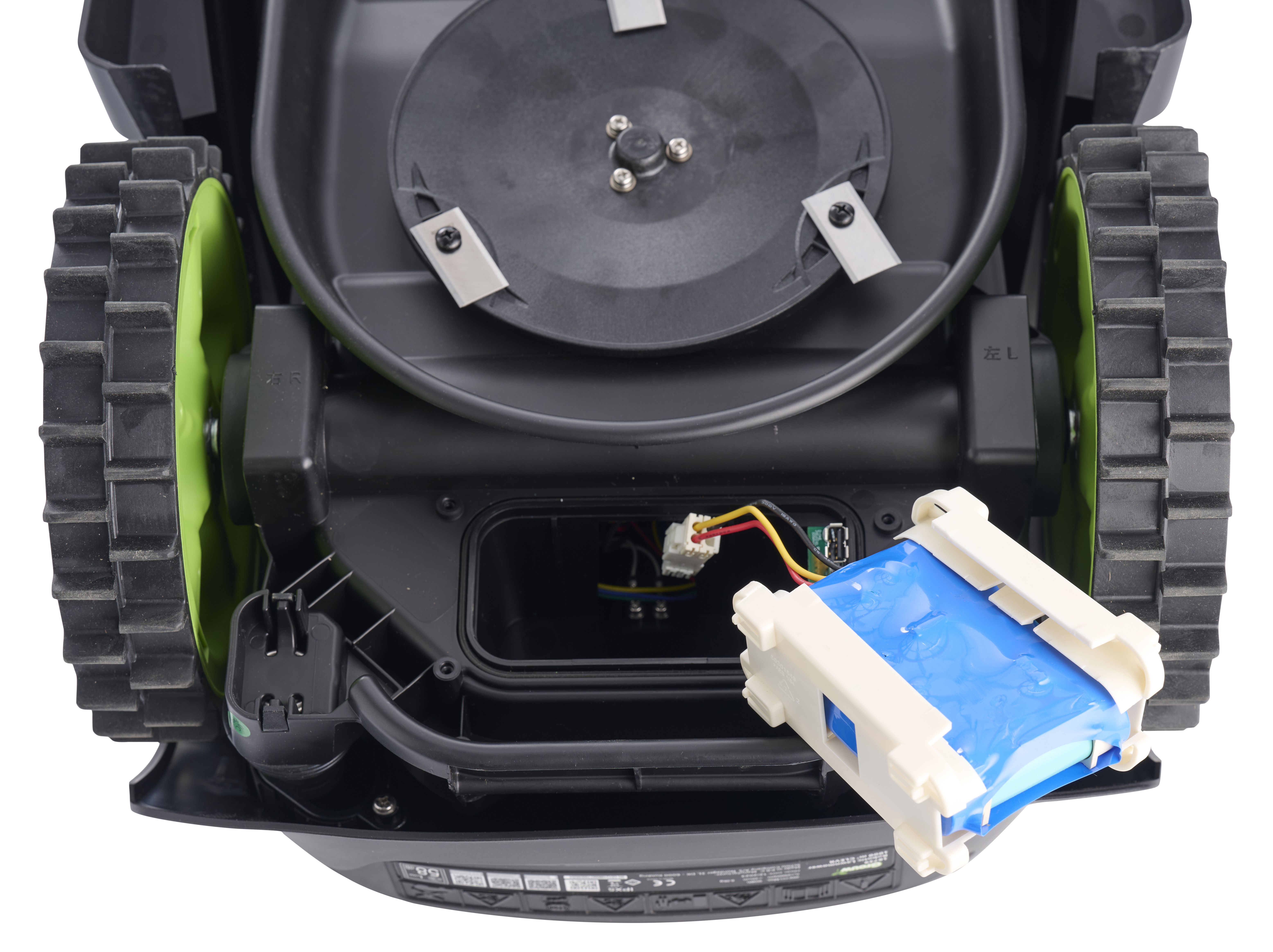

- Carefully lift out the old battery. Press the clip lock and remove the connectors. Note: Do not pull on the cables. Hold the connectors and release the clip lock.
- Connect a new original battery by connecting the plugs until they click into place.
- Place the battery in the holder at the bottom of the compartment, replace the battery holder and battery cover in their positions, and tighten the screws.
*There is a USB port under the battery cover. This USB port may only be used by an authorised workshop. Make sure no grass or dirt gets on it.
