Setting the PIN code - Garden 500m2

Press “ START ” and “ HOME ” and hold both buttons down for 3 seconds.

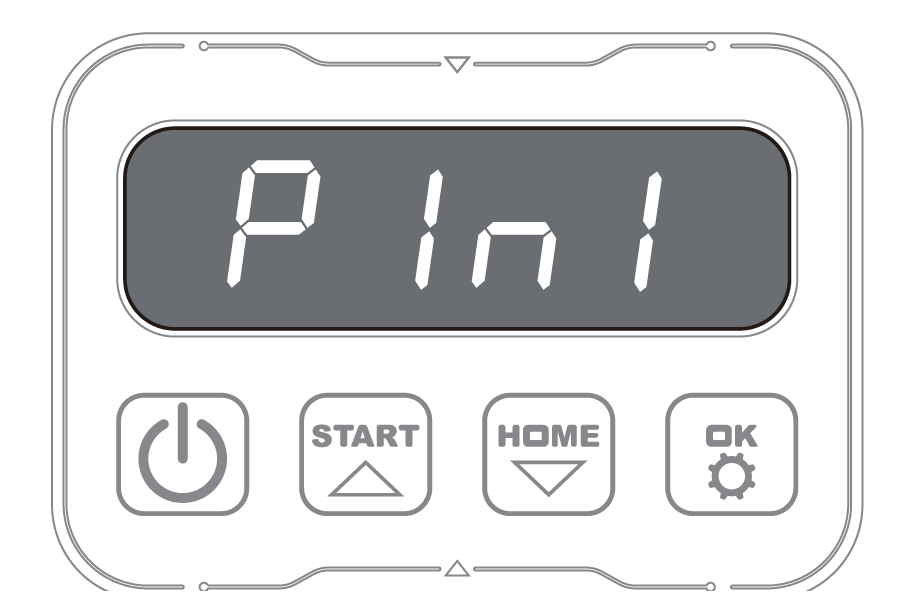

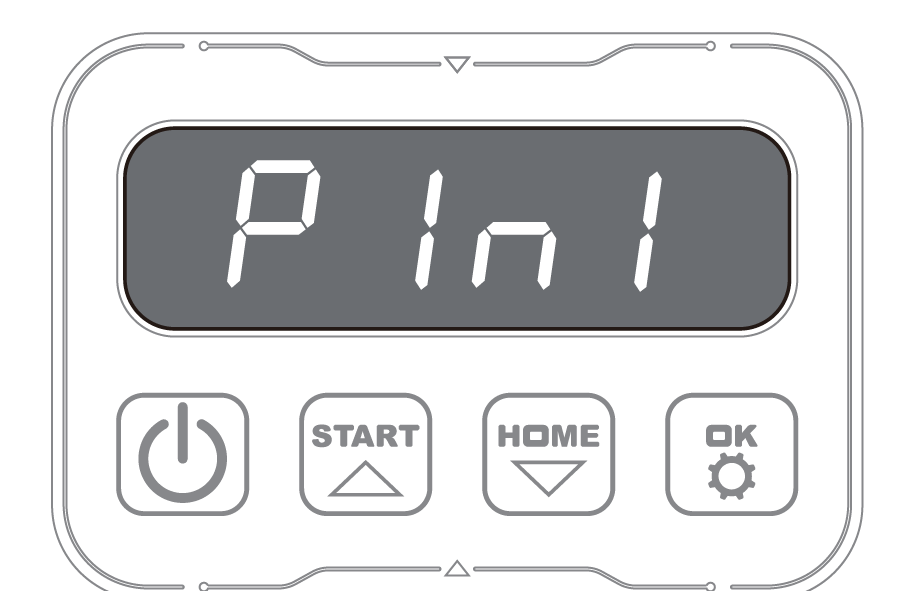

1. "PIN1" will be displayed on the screen.

Indstilling af pinkode ADANO RM5 og GARDEN 100455 1.PNG

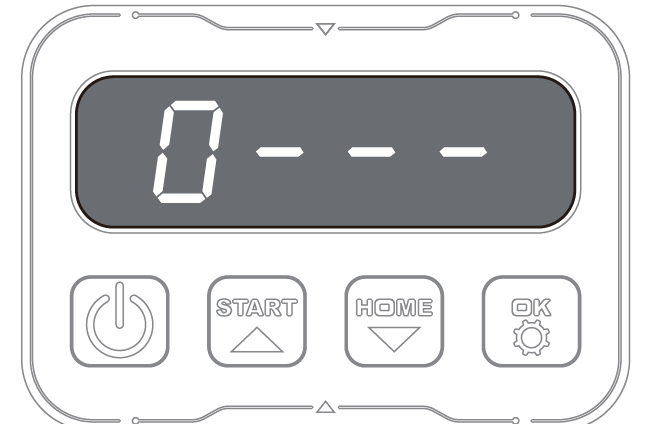

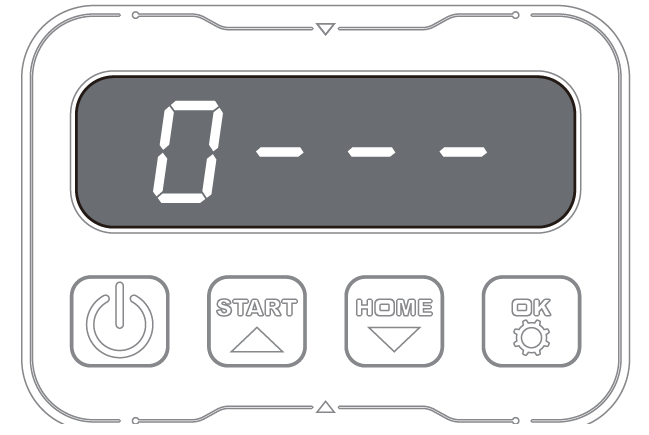

2. Enter the old PIN code by using the “ START ” and “ HOME ” buttons to select and “ OK ” to confirm each digit.

Indstilling af pinkode ADANO RM5 og GARDEN 100455 2.PNG

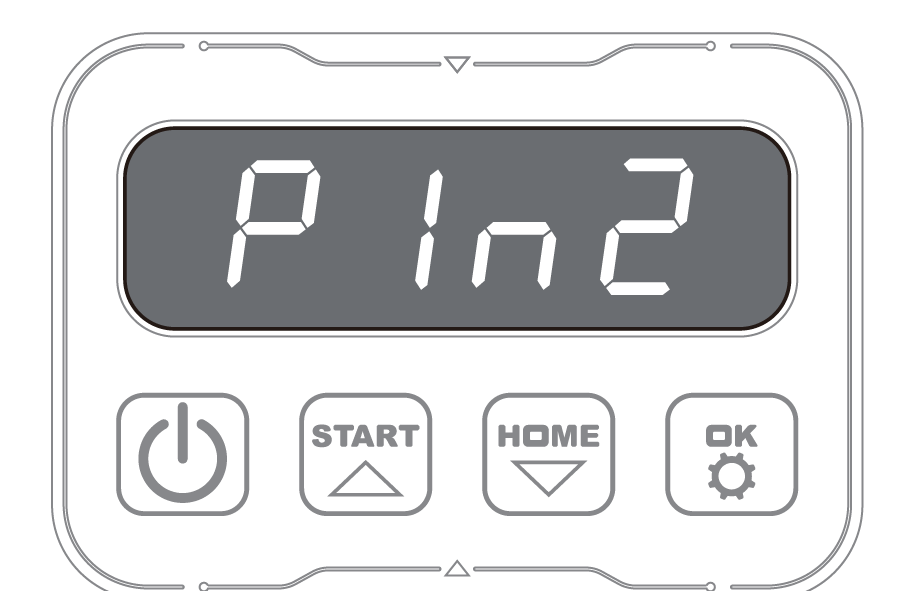

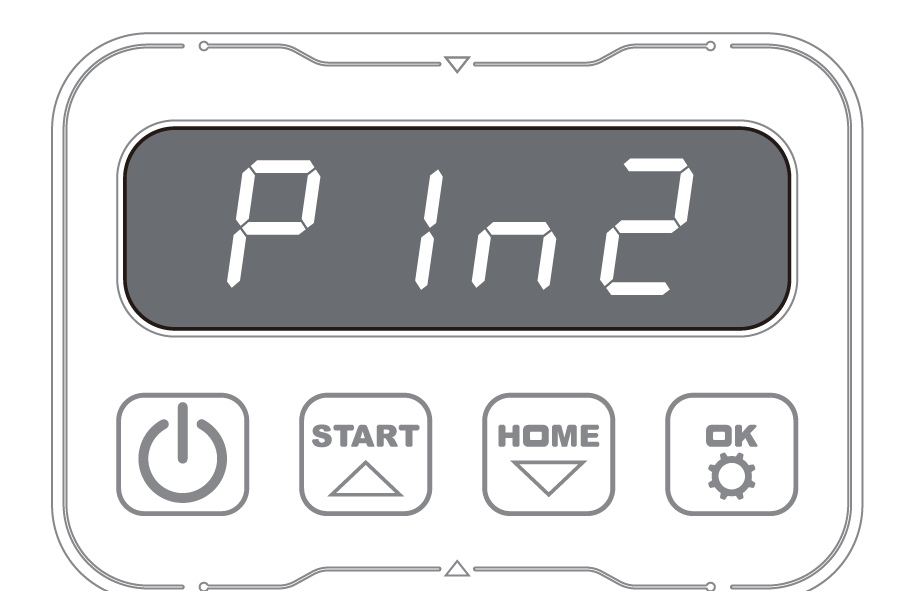

3. When the old PIN code has been entered, "PIN 2" will be displayed on the screen.

Indstilling af pinkode ADANO RM5 og GARDEN 100455 3.PNG

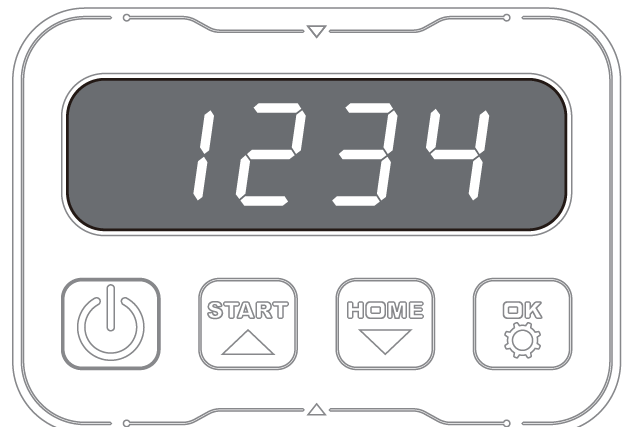

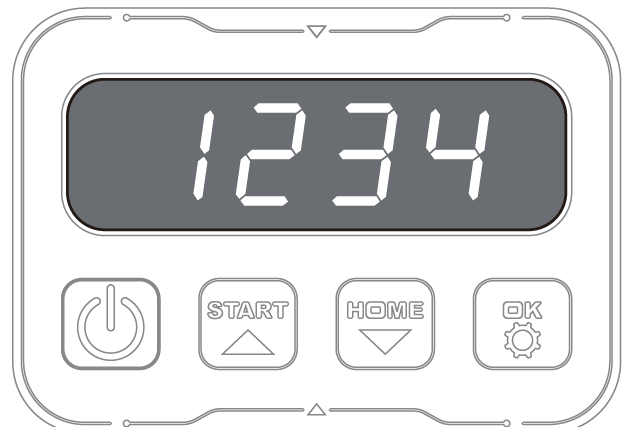

4. Enter the new PIN code in the same way as the old one.

Indstilling af pinkode ADANO RM5 og GARDEN 100455 4.PNG

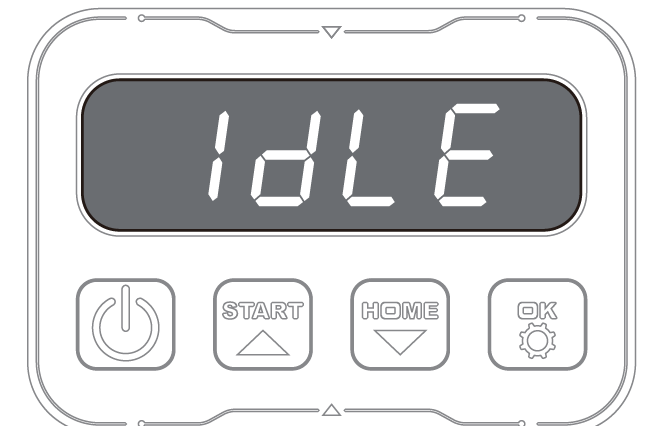

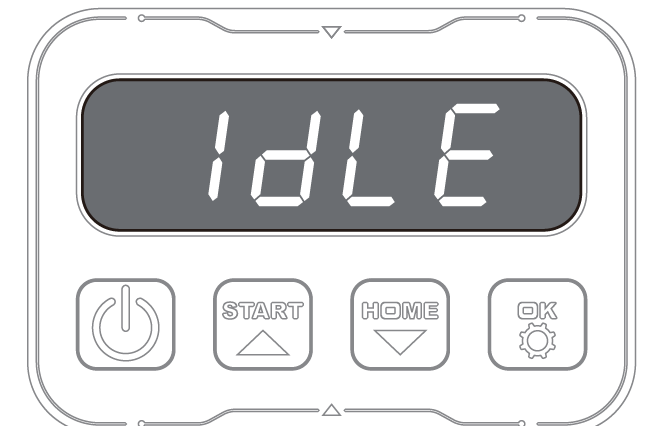

5. When the new PIN code has been entered and “ IDLE ” is displayed on the screen, it is saved.

Indstilling af pinkode ADANO RM5 og GARDEN 100455 5.PNG
