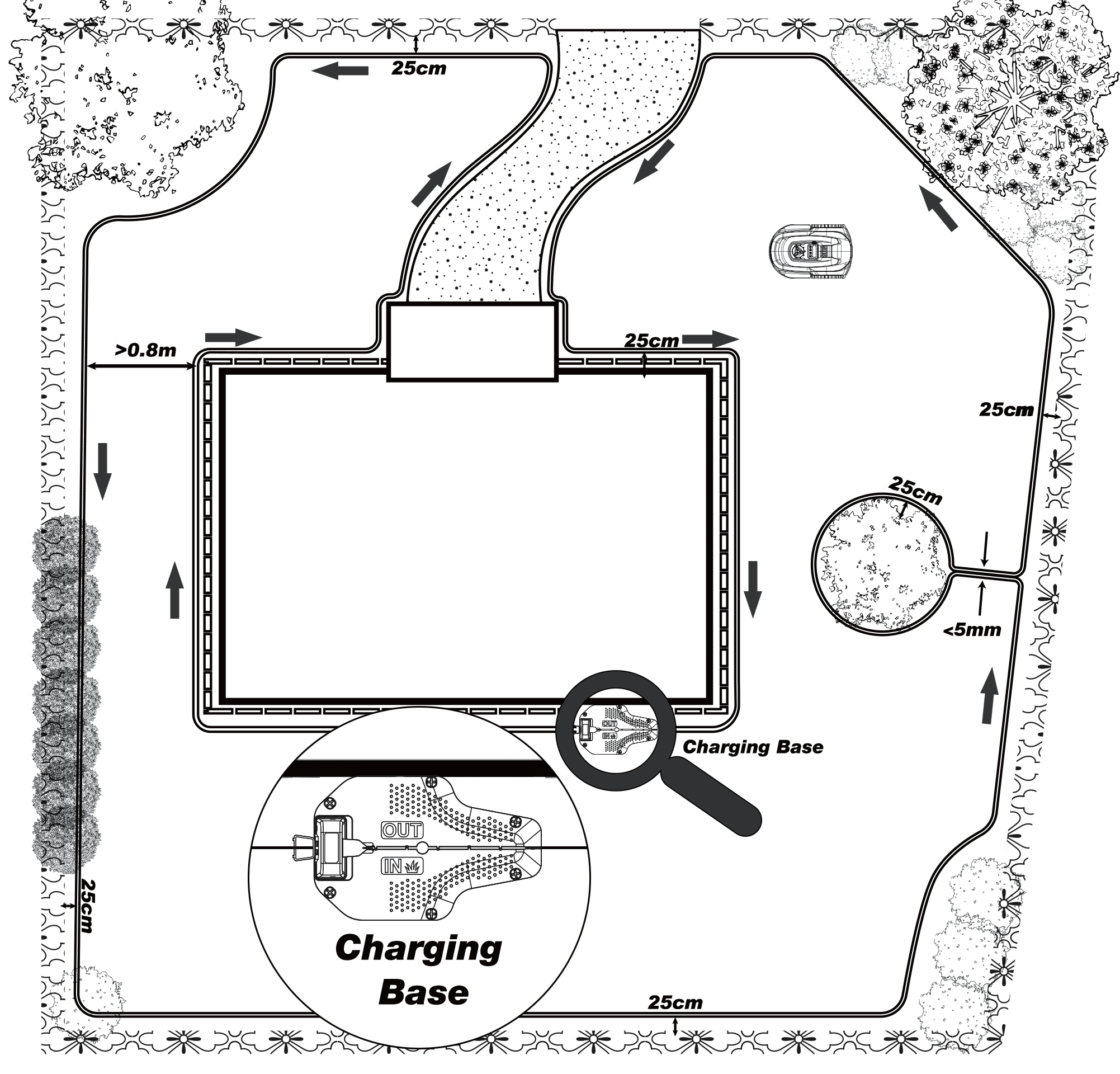

Installation and placement of charging station - Adano RM5 500m2 / SMART 365 500m2

  • Placement: Ensure that the charging station is close to a 230 V socket. Alternatively, you can use an extension cord to reach the desired position.
  • Direction: The flat entrance of the charging station should face to the right.
  • Surface: Place the charging station on a completely level surface.

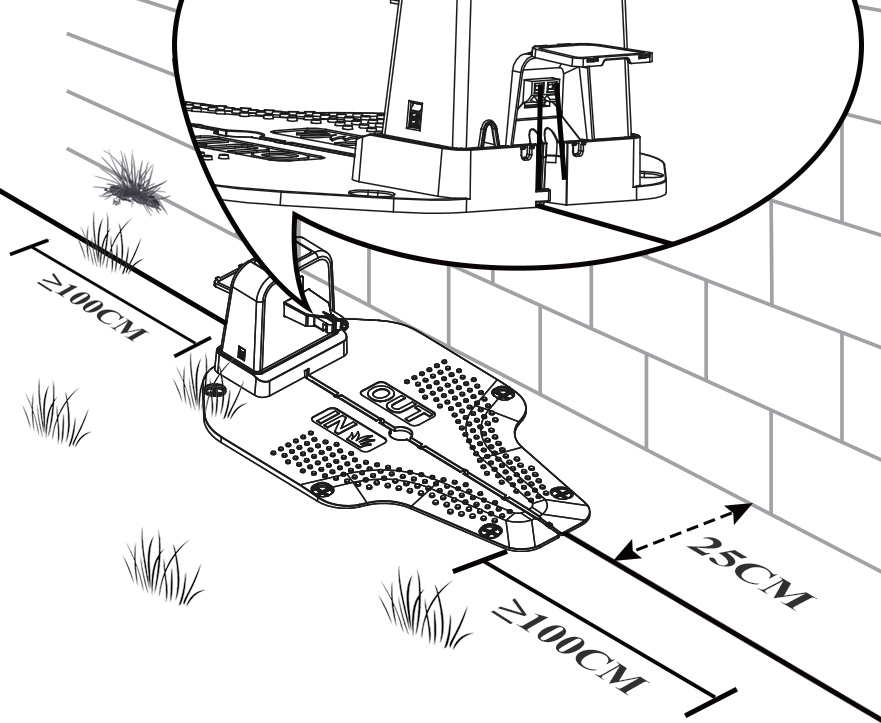

  • Access: There should be a straight stretch of at least 1 metre in front of and behind the charging station to ensure proper access for the robotic lawn mower.
