1. Make a sketch: Draw a sketch of your lawn with the obstacles you want to protect. This helps to plan the cabling work and the location of the charging station.

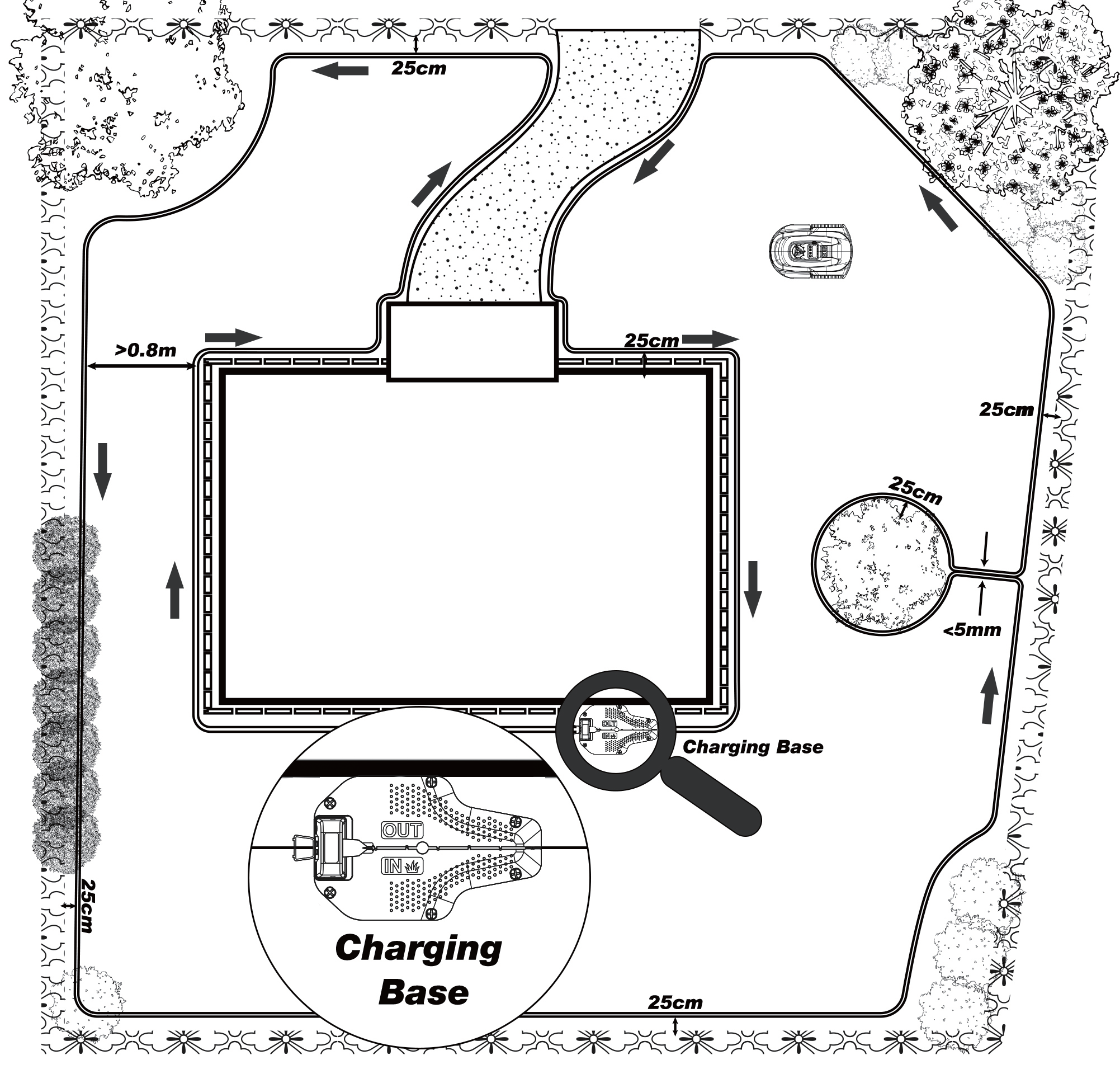

2. Lay the boundary wire: Start at the charging station and lay the wire around the garden and around obstacles such as flower beds and small trees.



3. Read the manual: Read the section on installing the robotic lawn mower thoroughly before planning and installing the boundary wire.



4. Check cable requirements: Ensure that you have enough cable to cover the entire lawn up to 500 m². If you have many obstacles, you may need additional cable. The total length must not exceed 300 metres, and any additional cable must meet the same specifications.



Før Montering - ADANO RM5 og GARDEN 100455 - 1.png
