Samlemuffe for break or extension of cable

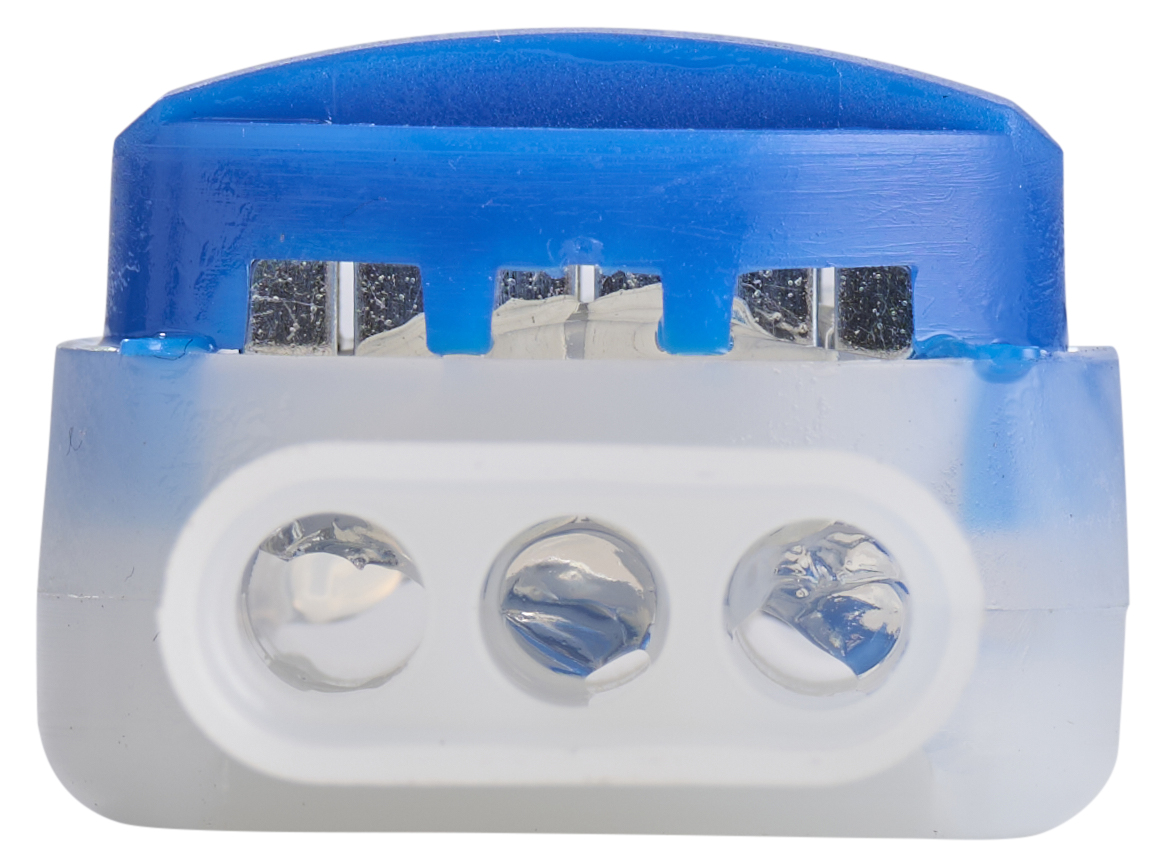

Use a waterproof junction box (silicone box) for the repair or extension of boundary cable.

Samlemuffer 1.jpg

Do not strip the wire before inserting it into the junction box.

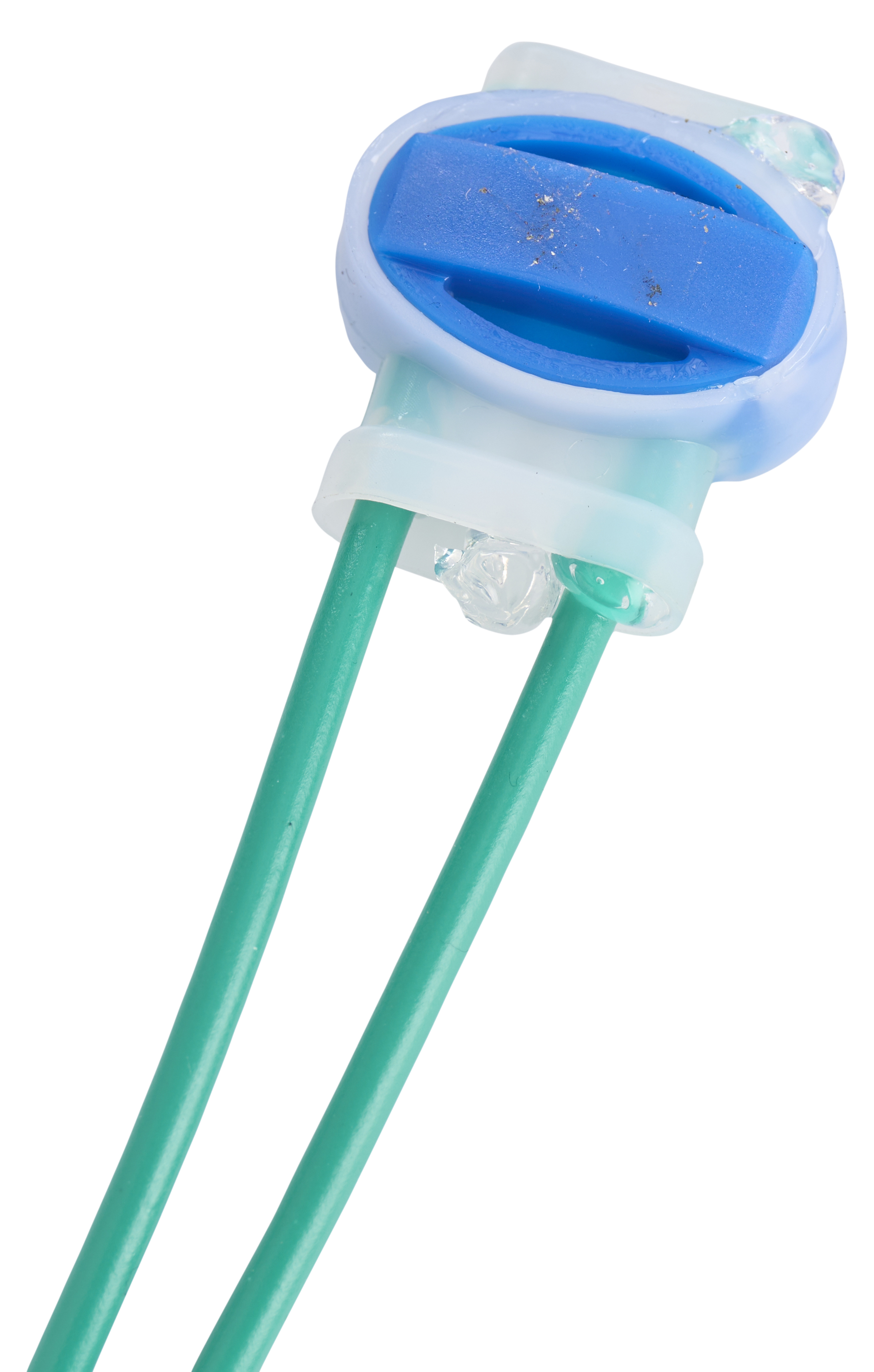

Insert the wire into the junction box, where the pins will penetrate the insulation.

Samlemuffer 2.jpg

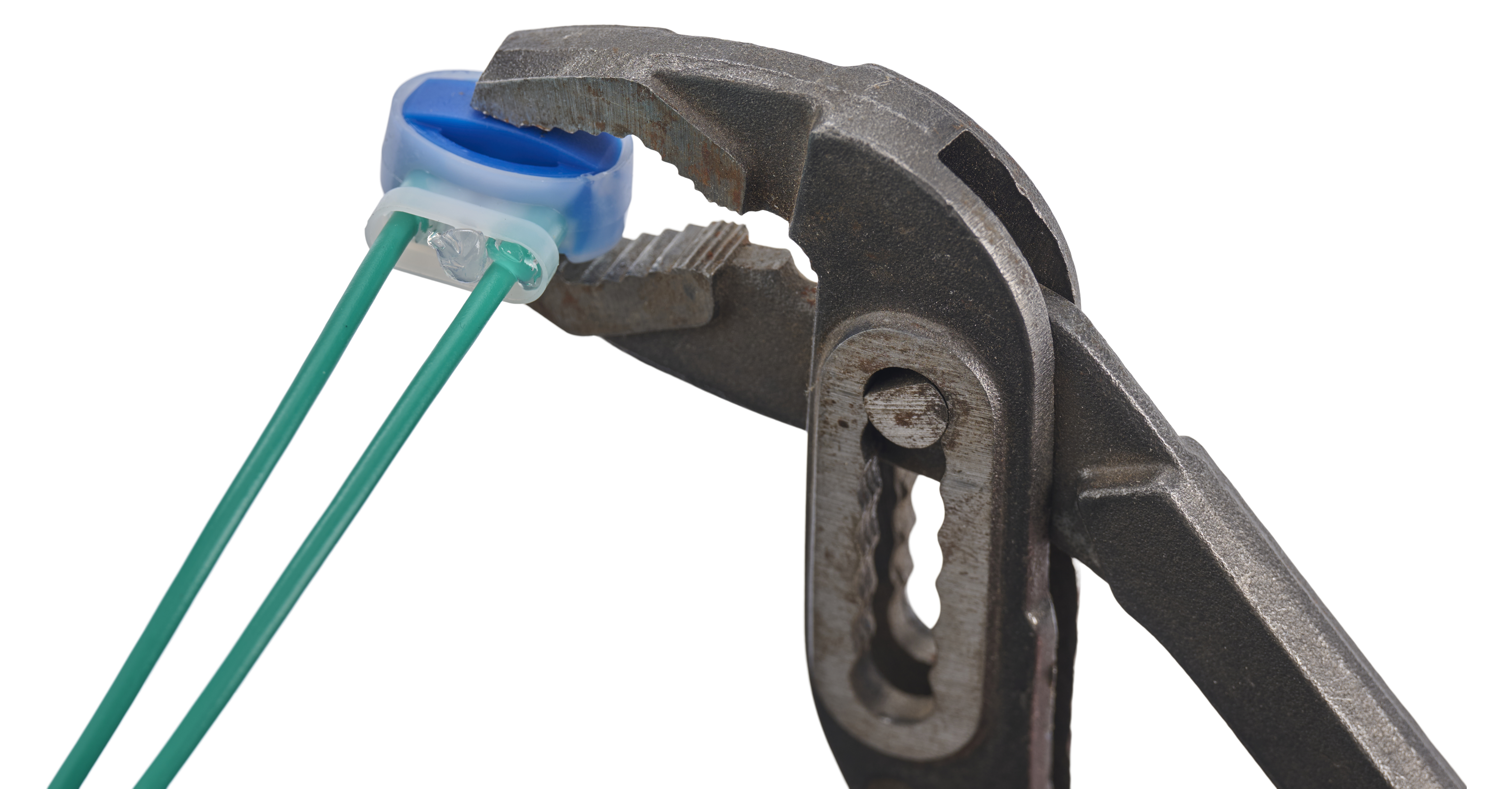

Press down the blue piece to seal the junction box. A bit of silicone will come out.

Samlemuffer 3.jpg

Bury the junction box in the lawn to prevent the blades from cutting the boundary wire.
