Control on the lawnmower's display - Grouw SMART VISION 600m2

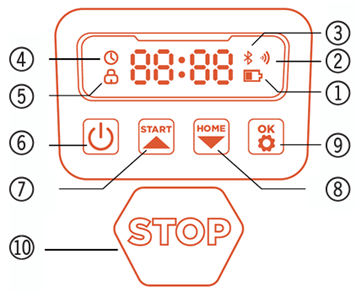

1. Power icon: Shows the remaining battery power.
   1.
      • 1 bar: 30% or below
      • 2 bars: 31-66%
      • 3 bars: 67% or above
2. WiFi icon: Indicates whether the machine is connected to WiFi.
3. Bluetooth icon: Shows whether the machine is connected to Bluetooth.
4. Timer setting icon: Indicates that the machine is in timer setting mode.
5. Password setting icon: Lights up when you need to enter or change the password.
6. On/Off: Turns the machine on or off.
7. Start using the machine: Starts the machine.
8. Return to station: Sends the machine back to the charging station.
9. Confirm: Confirms an action.
10. Stop: Stops the machine.

Display on the dashboard:

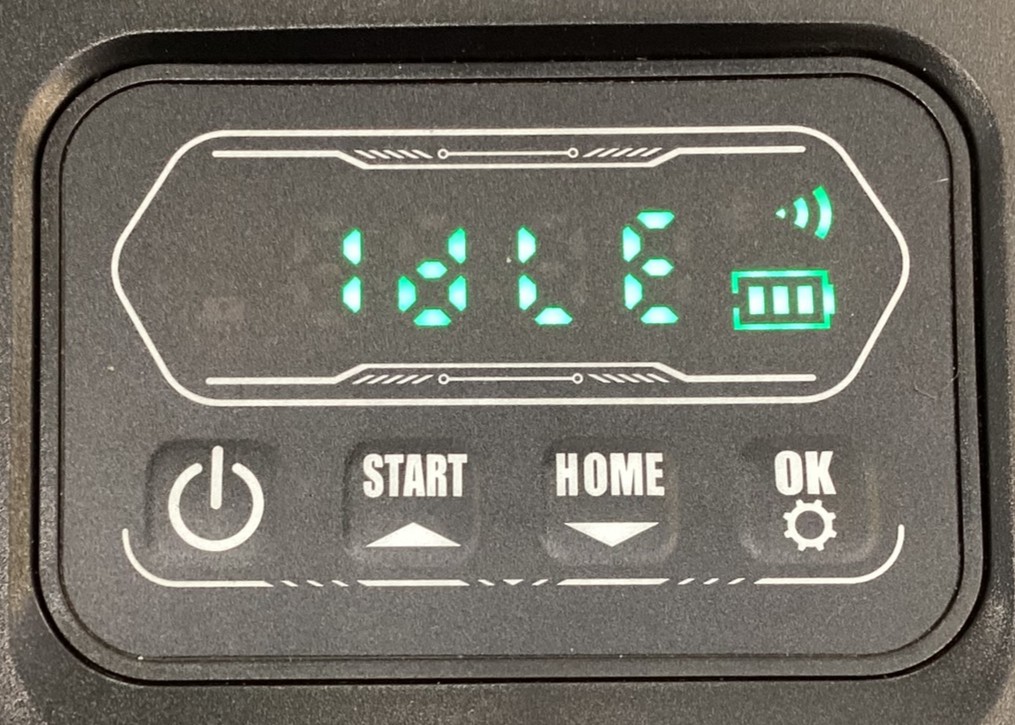

• Idle: The machine is in standby mode.

• Rain delay: The machine detects rain and returns to the charging station.

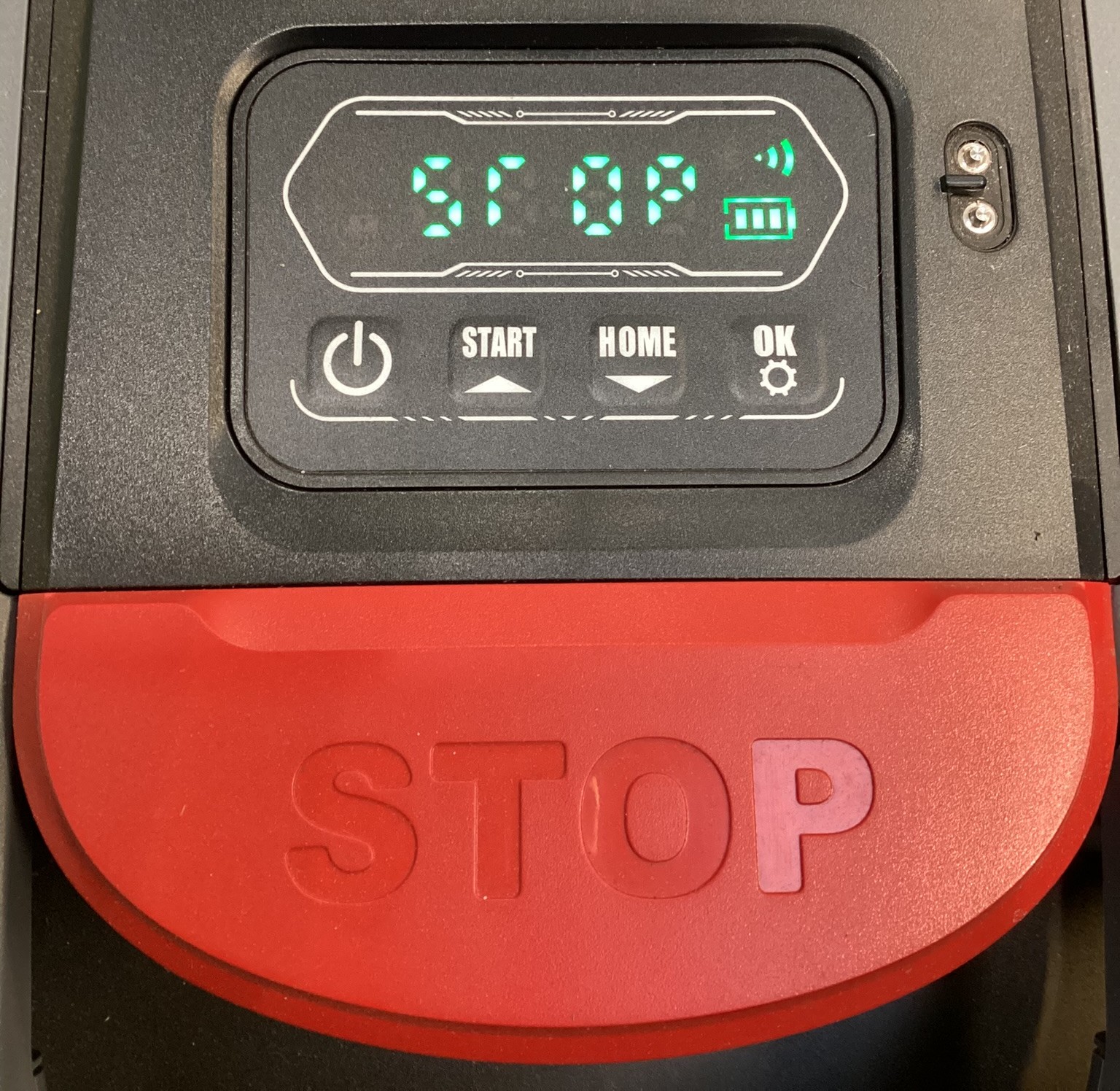

• Stop: The emergency stop button has been pressed.
